Features and Specifications:

- Enclosure: Weatherproof IP67, O-ring sealed
- Material: Aluminum, Polyester coated
- Ambient temperature: -20°C ~ +80°C
- Switch cams: Adjustable, preset for 90°
- Cable entries: 2xM20x1.5

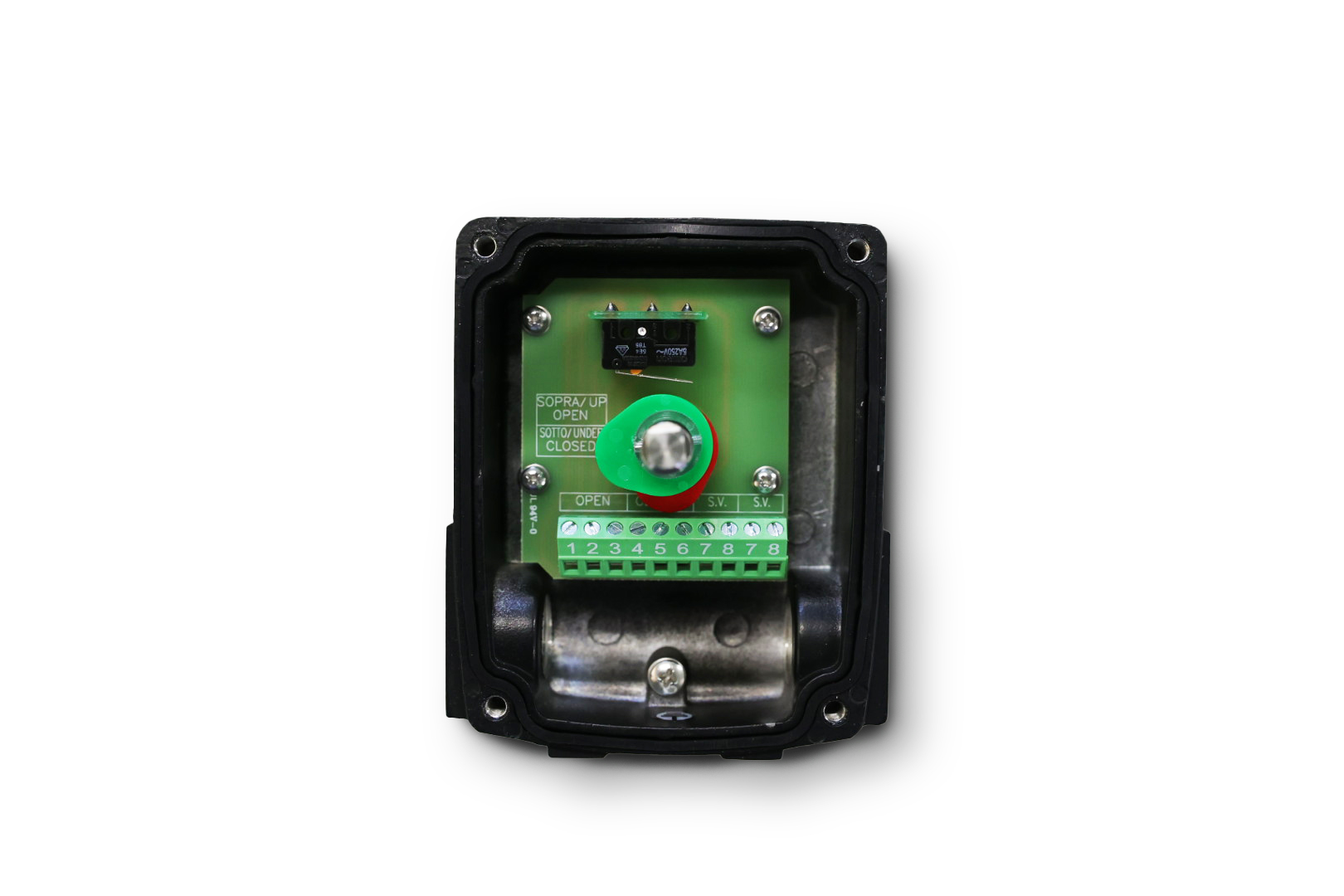

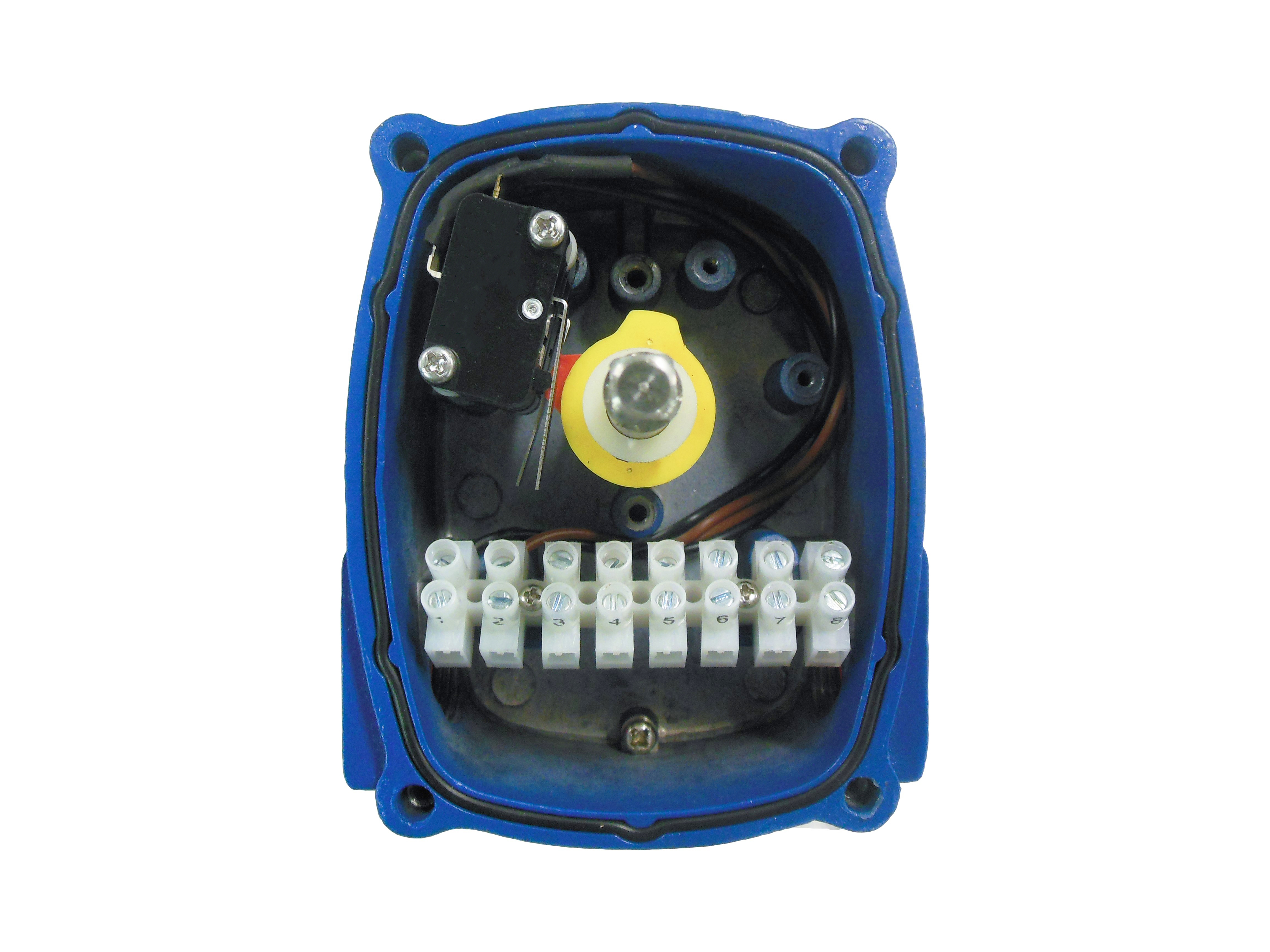

- Terminal Block: 8 pos of terminal strips (6 for switches, 2 for solenoid valve power)
- Position indicator: Dome type 0° ~ 90°
- Mounting bracket: Stainless steel acc. to VDI/VDE3845, NAMUR
- Mechanical switches: 2 pcs. Max 250V AC 16A, 125 V DC 0.6A



Complete datasheet in download area below.
