Technical Info

  • Compact package to fit in restricted spaces
  • Torque output up to 5 Nm (44 in-lb)
  • Working temperature -20°C (-4°F) to +80°C (+180°F)
  • Protection class IP65 comparable to NEMA 4X
  • Micro-switches for open-close signals
  • Micro-switches can pass up to 1A
  • Reversing motor

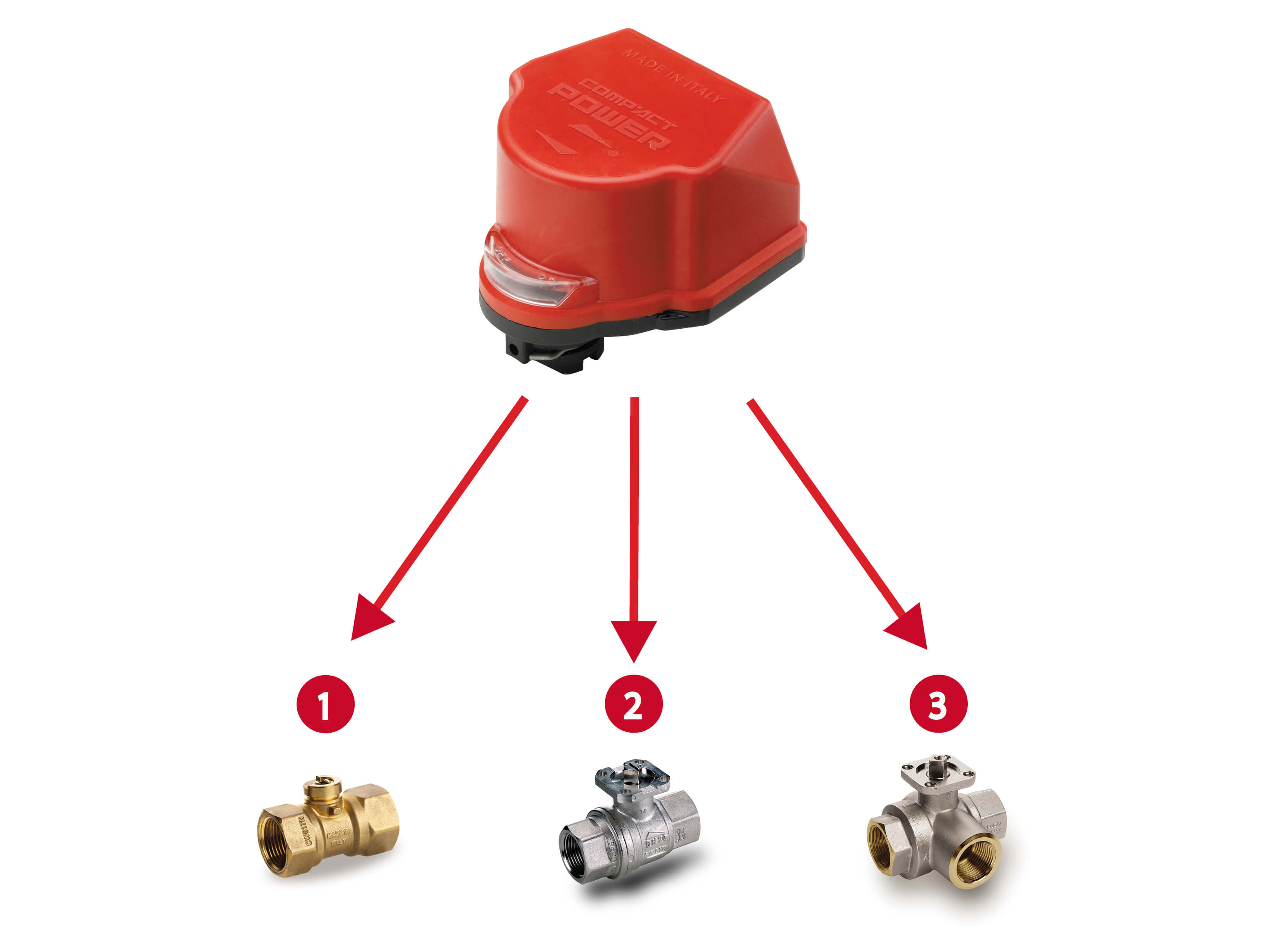

  • Direct mount on valve for perfect shaft alignment
  • Positive orientation between ball valve and actuator
  • Actuator easily removable for manual operating by screwdriver
  • Visual position indicator
  • Corrosion resistant plastic housing
  • Actuator has successfully passed 100.000 cycle life tests
  • Duty cycle 60%

Suitable for RuB actuatable valves up to 1 1/4” size (only for s.64 LT)

  • 12 V DC, 24V DC;
  • 24V AC 50-60Hz;
  • 110-120V AC 50/60Hz;
  • 230V AC 50/60Hz;
  • 4W for 12 VDC and 24V DC, 6W for 230V AC, 8W for 24V AC and 110-120V AC
  • 5 sec for 12 V DC, 24V DC
  • 20 sec for 24 V AC, 110 -120V AC and 230V AC at 50 Hz (15 sec at 60 Hz)

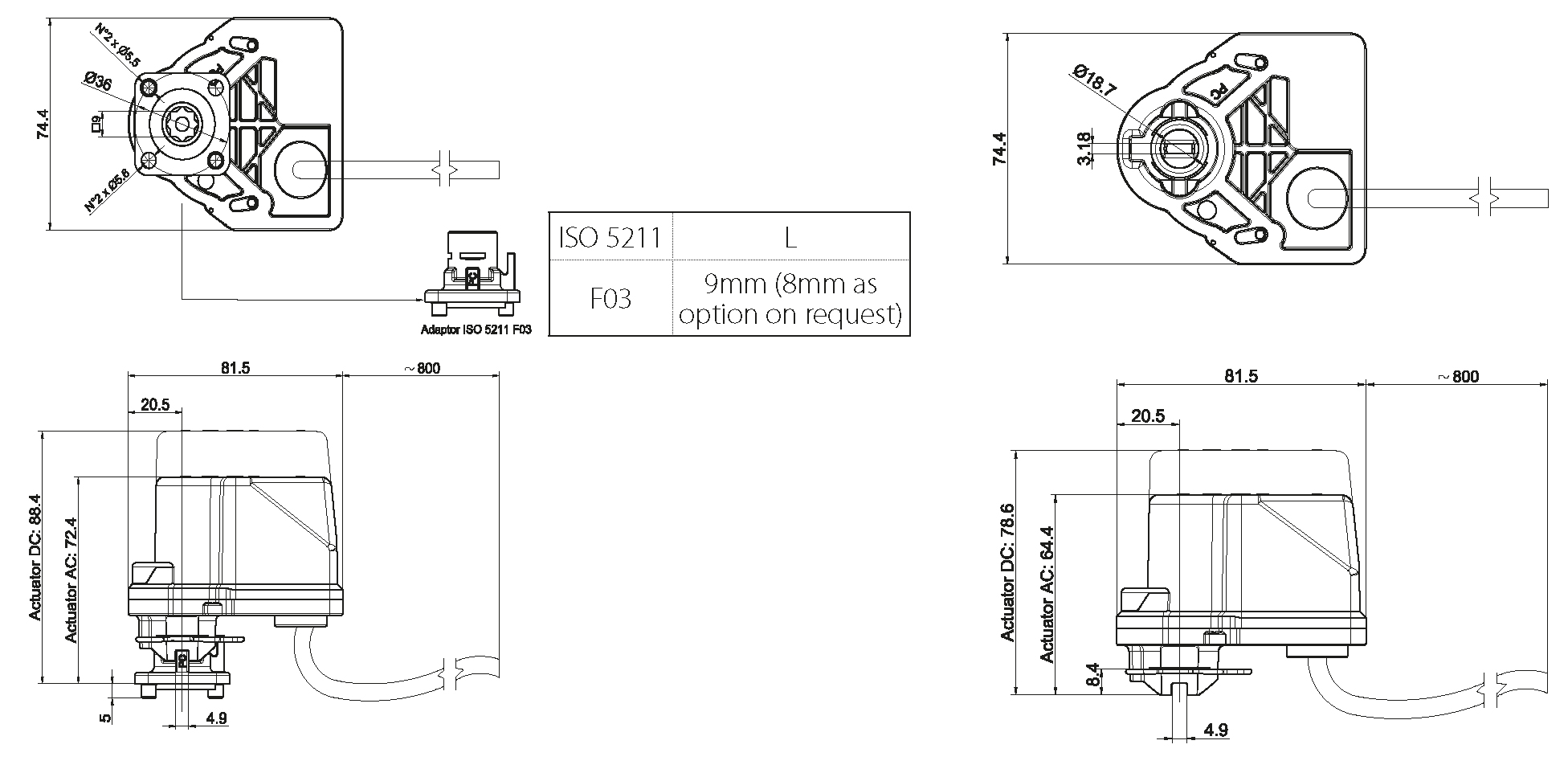

Dimensions mm

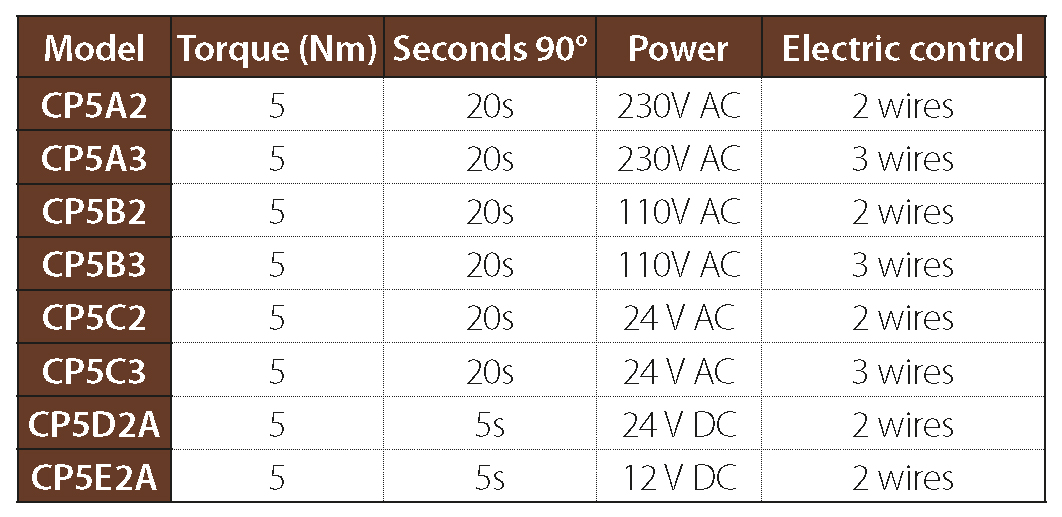

How to order

Technical material

Document

Ask for additional information on the whole range of RuB products and consult with your supplier for special applications.
