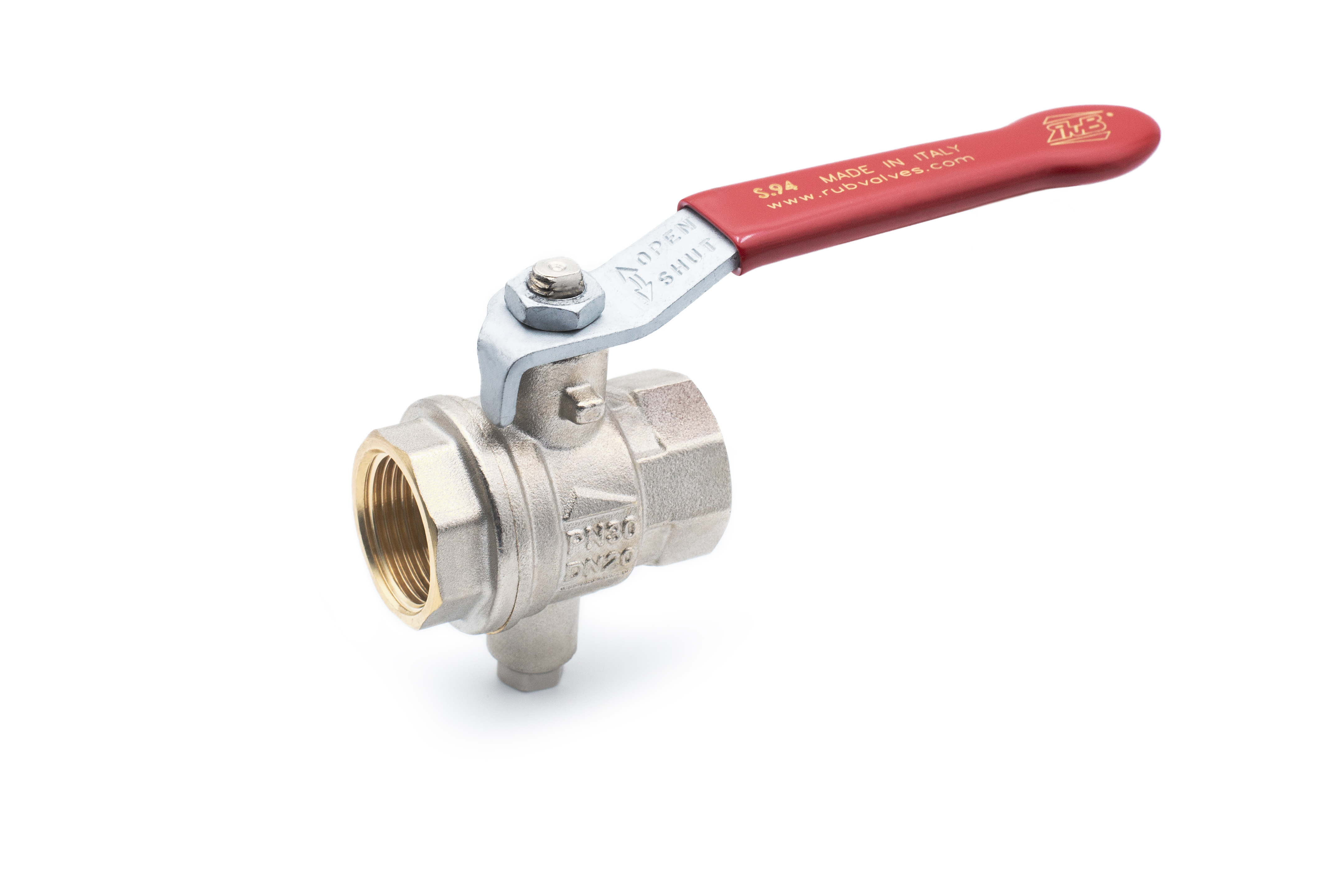

Technical Info

  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated brass ball for longer life
  • Handle stops on body to avoid stress at stem
  • Full port to DIN 3357 for maximum flow
  • Hot forged sand blasted, external nickel plated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Finest brass according to EN 12165 and EN 12164 specifications
  • Tapped bottom M10x1 connection for temperature detector and other devices at user’s option
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • Handle removable with valve in service
  • WARNING: do not exceed reasonable temperature and/or electrical load
  • Blowout-proof nickel plated brass stem
  • Maintenance-free, double FPM O-rings at the stem for maximum safety
  • 30 bar (450 PSI) non-shock cold working pressure
  • -20°C to +170°C  (-4°F to +350°F)
  • WARNING: freezing of the fluid in the installation may severely damage the valve
  • Pure PTFE self-lubricating seats with flexible-lip design
  • Stem extension
  • T-handle
  • Oval lockable handle
  • Stainless steel handle (1.4016 / AISI 430)
  • Patented locking device
  • Stubby handle
  • RuB memory stop designed to be installed with our stubby handle
  • ISO 228 parallel female by female threads
  • Glass filled PTFE seals
  • Custom design
  • According to 2014/68/UE module A: it cannot be used with dangerous gases in sizes larger than 25mm
  • EAC – Declaration of conformity (Russia, Kazakhstan, Belarus)
  • RoHS Compliant (EU)

  NOTE: approvals apply to specific configurations/sizes only.

1.1/4” – 2” hollow ball

Part description Quantity Part Material
1- Nickel plated body (size 1/4”) - Unplated DZR body (sizes 3/8”- 2”)
1
CW617N - CW602N
2- Seat
2
PTFE
3- Chrome plated ball (size 1/4”) - Chrome plated DZR ball (sizes 3/8”- 2”)
1
CW617N - CW602N
4- Nickel plated end -cap (size 1/4”) - Unplated DZR end-cap (sizes 3/8”- 2”)
1
CW617N - CW602N
5- Unplated extended stem O-ring design (size 1/4”) - Unplated extended DZR stem O-ring design (sizes 3/8”- 2”)
1
CW617N - CW602N
6- O-Ring
2
FPM
7- Unplated nut
1
CW617N
8- Geomet® nut
1
C4C (EN10263-2)
9- Red PVC coated Geomet® steel handle
2
DD11 (EN10111)
Red PVC coated Geomet® steel handle
1
DD11 (EN10111)

DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Ball valves are marked CE on handle from 1.1/4” to 2” as follow: CE XXCODEXX Cat I-A

Pressure-temperature chart
Pressure drop chart

Technical material

Document
Permetti download anche all'utente anonimo
On
Document

Ask for additional information on the whole range of RuB products and consult with your supplier for special applications.
