Technical Info
- 24h 100% seal test guaranteed
- Dual sealing system allows valve to be operated in either direction making installation easier
- No metal-to-metal moving parts
- No maintenance ever required
- Handle clearly shows ball position
- Silicone-free lubricant on all seals
- Chrome plated brass ball for longer life
- Handle stops on body to avoid stress at stem
- Full port to DIN 3357 for maximum flow
- Hot forged sand blasted, external nickel plated brass body and cap sealed with Loctite® or equivalent thread sealant
- Finest brass according to EN 12165 and EN 12164 specifications
- Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
- Handle removable with valve in service
- Blowout-proof nickel plated brass stem
- Maintenance- free, double FPM O-rings at the stem for maximum safety
- 40 bar (600 PSI) up to 2″, 30 bar (450 PSI) over 2″ non-shock cold working pressure
- -40°C to +180°C (-40°F to +356°F)
- WARNING: freezing of the fluid in the installation may severely damage the valve
- Pure PTFE self-lubricating seats with flexible-lip design

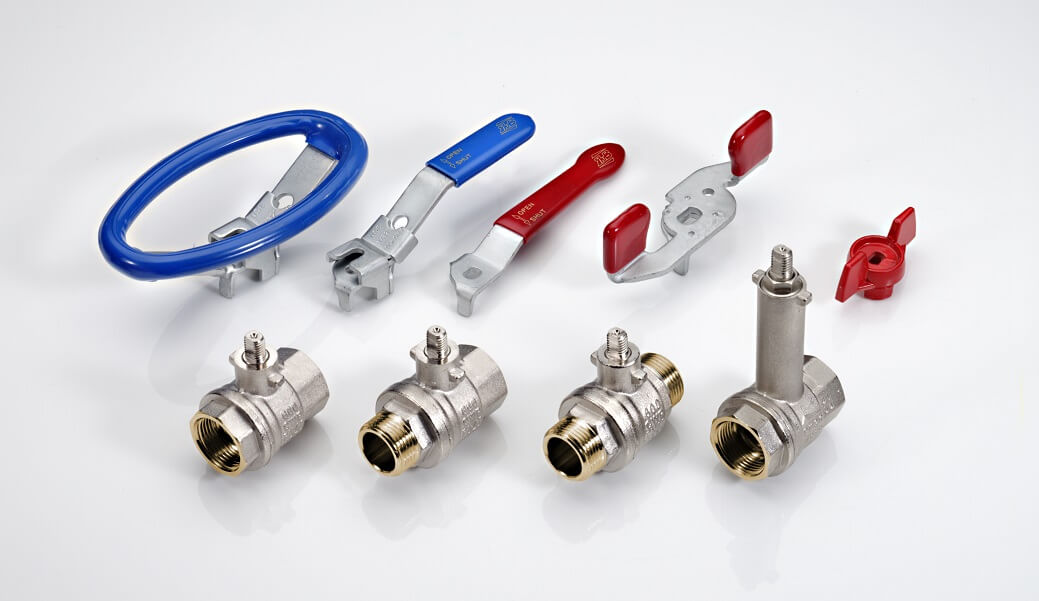

- Stem extension
- T-handle
- Stainless steel handle (1.4016 / AISI 430)
- Patented locking device
- Dezincification resistant brass body and components
- Oval lockable handle up to 2″, round over 2″
- Male by female threads. Male thread available also with flat face for flat sealings usage.
- Male by male threads. Male thread available also with flat face for flat sealings usage.
- Stubby handle up to 2″
- RuB memory stop is designed to be installed with our stubby handle
- ISO 228 parallel female by female threads
- Stainless steel ball (1.4401 / AISI 316)
- Glass filled PTFE seals
- Custom design
- According to 2014/68/UE module A: it cannot be used with dangerous gases in sizes larger than 25mm
- Water Regulations Advisory Scheme (United Kingdom)
- GOST-R (Russia)
- EAC – Declaration of conformity (Russia, Kazakhstan, Belarus)
- RoHS Compliant (EU)
NOTE: approvals apply to specific configurations/sizes only.
1.1/4”- 2” hollow ball

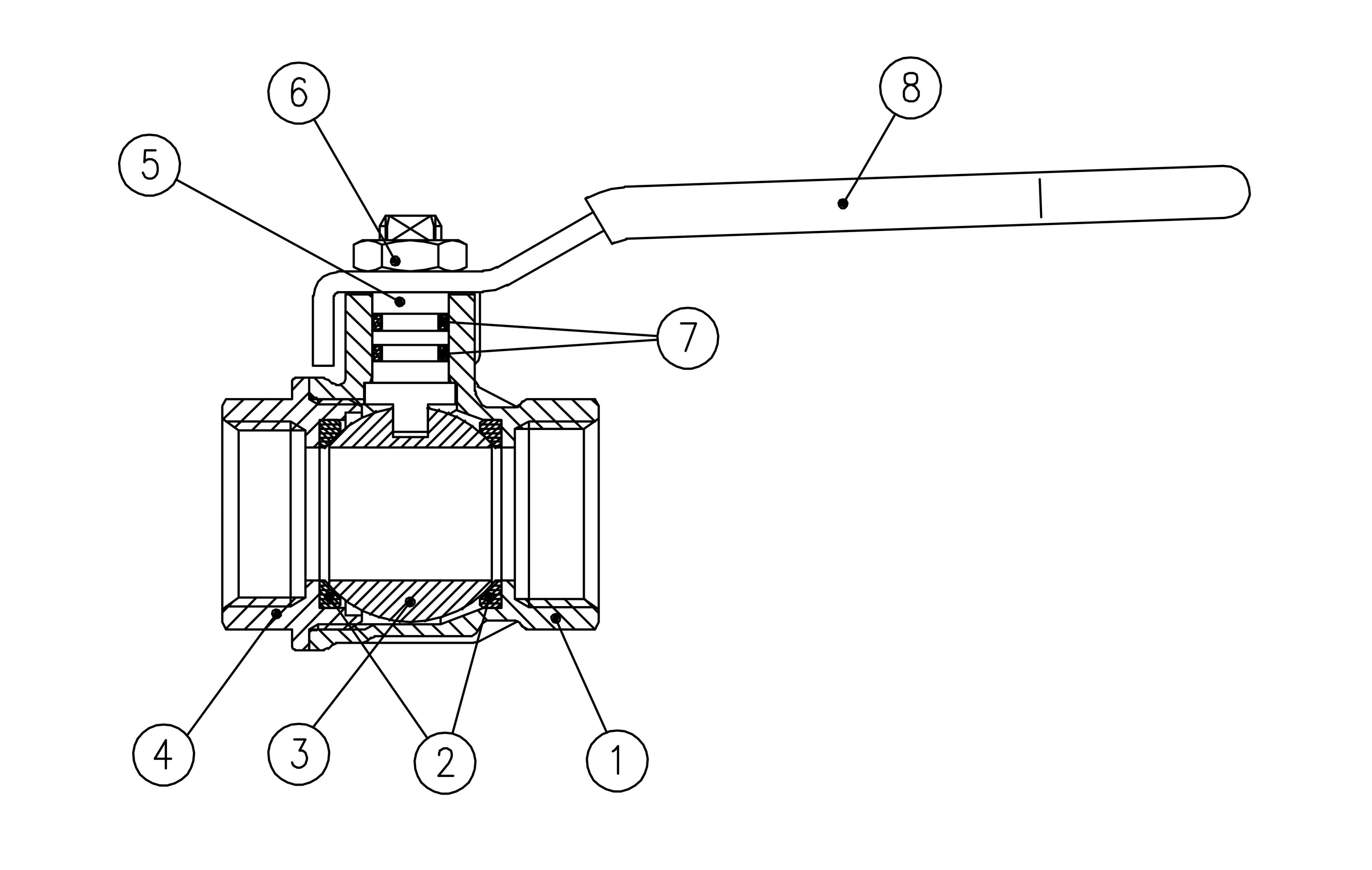

| Part description | Quantity | Part Material |
|---|---|---|
|
Nickel plated body (external nickel plated, unplated inside up to 2")
|
1
|
CW617N
|
|
Seat
|
2
|
PTFE
|
|
Chrome plated ball
|
1
|
CW617N
|
|
Nickel plated end-cap (external nickel plated, unplated inside up to 2")
|
1
|
CW617N
|
|
Nickel plated stem O-ring design
|
1
|
CW617N
|
|
Geomet® nut
|
1
|
CB4FF (EN10263-2)
|
|
O-Ring
|
2
|
FPM
|
|
Red PVC coated Geomet® steel handle
|
1
|
DD11 (EN10111)
|

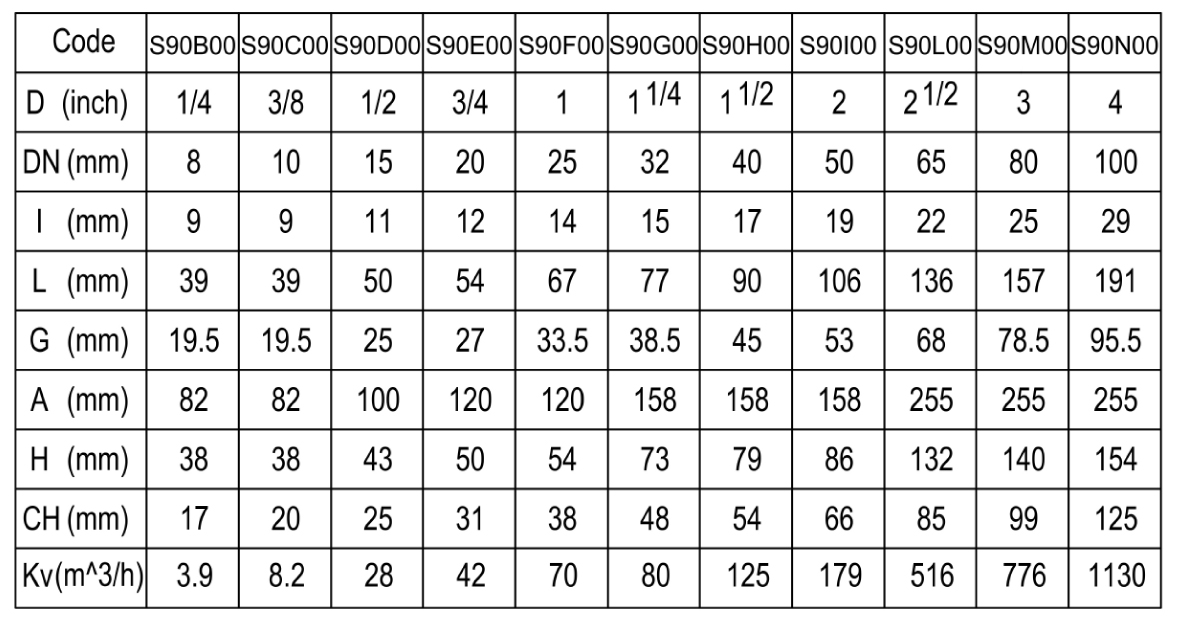

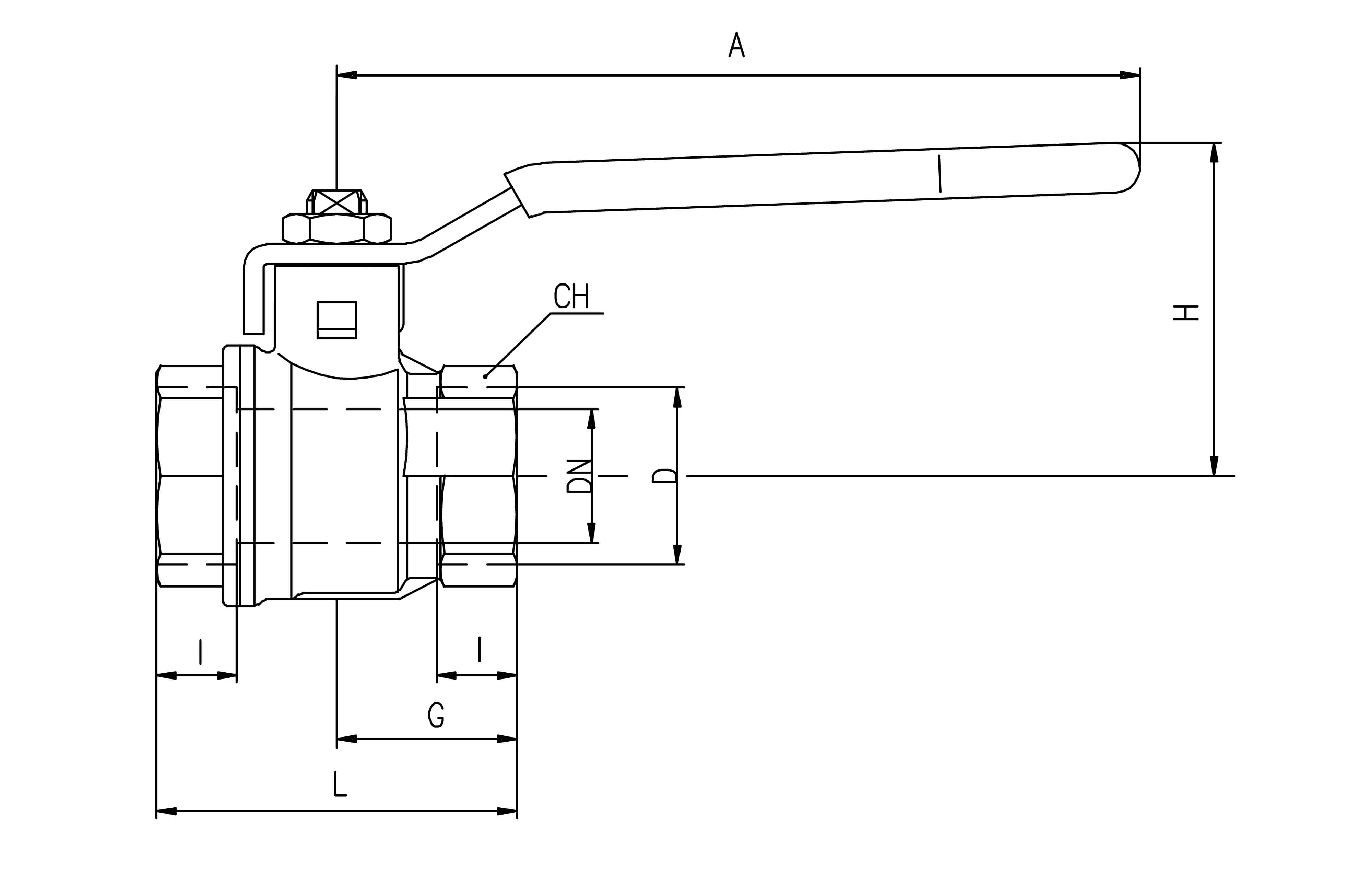

DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Stem configuration of valves over 2” is slightly different. Ball valves are marked CE on handle from 1.1/4” to 2”, on body over 2” as follow: CE XXCODEXX Cat I-A

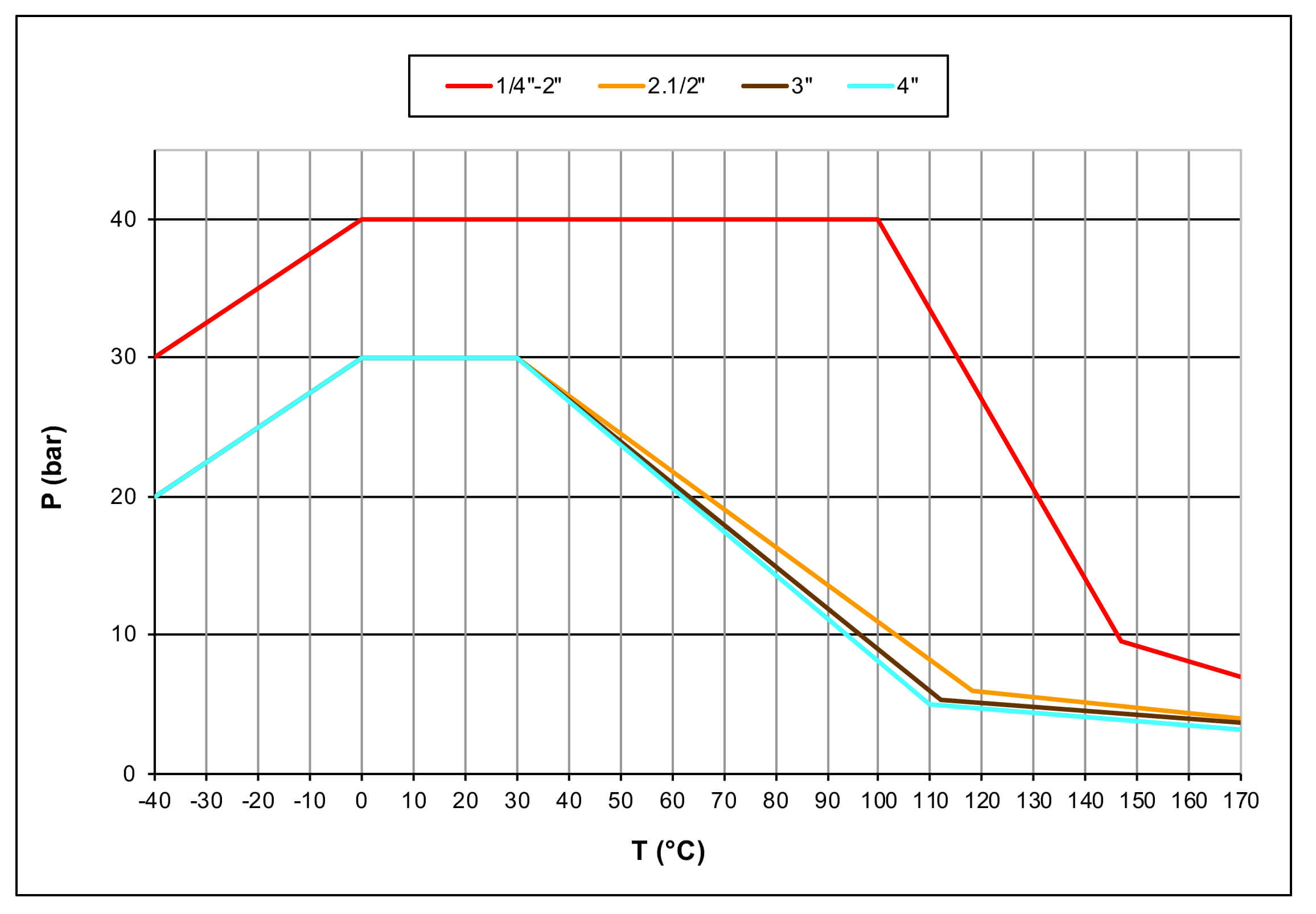

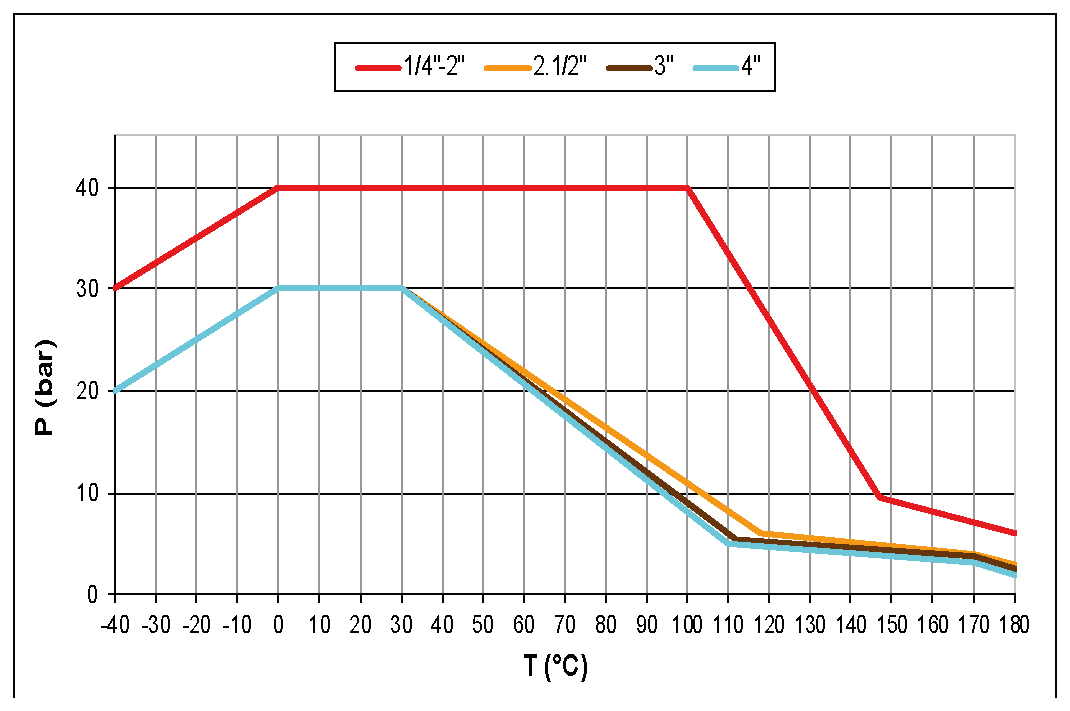

Pressure-temperature chart
Pressure drop chart
Technical material
Ask for additional information on the whole range of RuB products and consult with your supplier for special applications.
