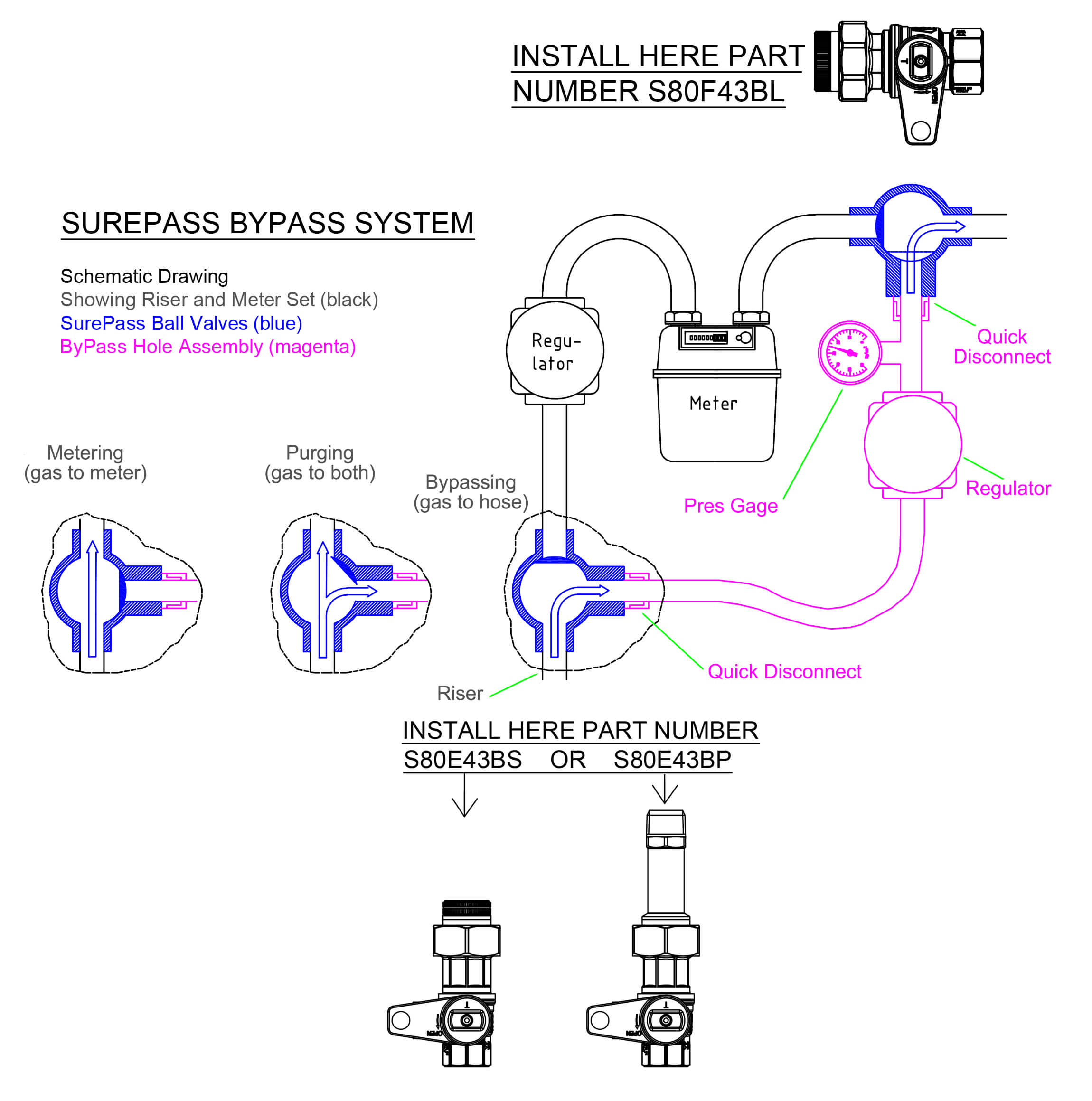

One quick turn switches valve from normal metered flow to bypass mode for rapid on-line servicing of meter or regulator.

Technical Info

  • No metal-to-metal moving parts
  • No maintenance or lubrication ever required
  • Every valve production tested twice for internal or external leakage
  • Meets all applicable parts to DoT 192
  • Customer service never interrupted
  • Chrome plated brass ball
  • Gas theft discouraged by plastic security plug in bypass port and port inacessible when barrel lock in use
  • Full port to DIN 3357 for maximum flow
  • Full 100 SCFH gas flow during bypassing
  • Rust-proof forged brass body, ball, stem and lockwing
  • Tamper proof lockwing
  • Single lever operation for positive switch from metering to bypassing
  •  Maintenance- free, double FPM O-rings at the stem for maximum safety, eliminate gas emissions
  • 175 PSI non-shock cold working pressure
  • -40°F/ +350°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
  • Pure PTFE seats with flexible-lip design
  • Painted gray
  • By-pass hose assembly
  • Dielectric union end long or short pattern
  • NPT taper ANSI B1.20.1 female by dielectric union female threads
  • Canadian standards Association (United States, Canada)
  • GOST-R (Russia)
  • RoHS Compliant (EU)

  NOTE: approvals apply to specific configurations/sizes only.

S80E43BS

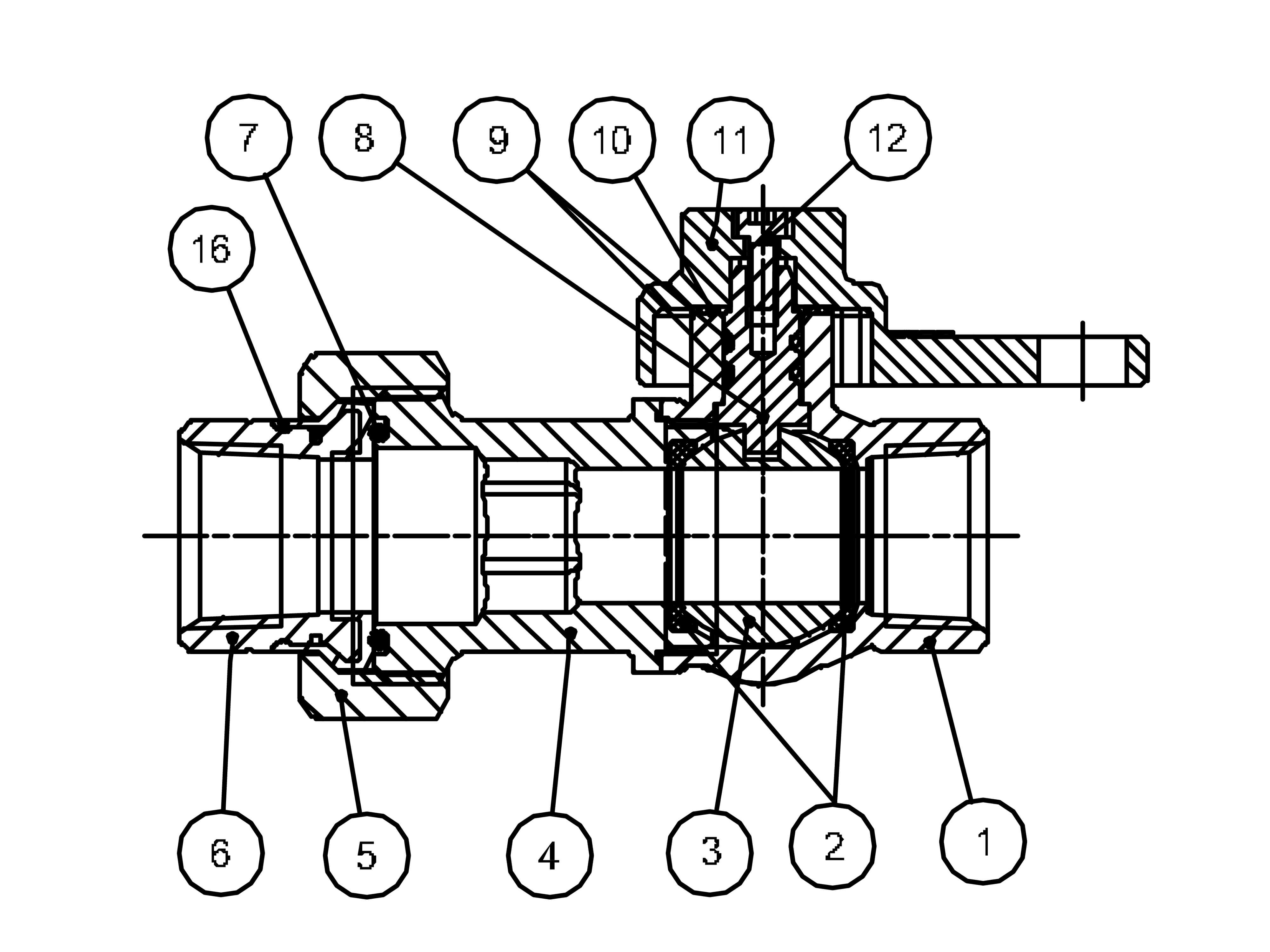

Part description Quantity Part Material
Sand blasted body
1
CW617N
Seat
2
PTFE glass filled 5-15%
Chrome plated ball
1
CW617N
Sand blasted end-cap
1
CW617N
Nut
1
CW617N
NPT female tail piece
1
CW617N
O-Ring
1
FPM
Stem O-Ring design
1
CW617N
O-Ring
2
FPM
Washer
1
PTFE glass filled 25%

Technical material

Ask for additional information on the whole range of RuB products and consult with your supplier for special applications.
