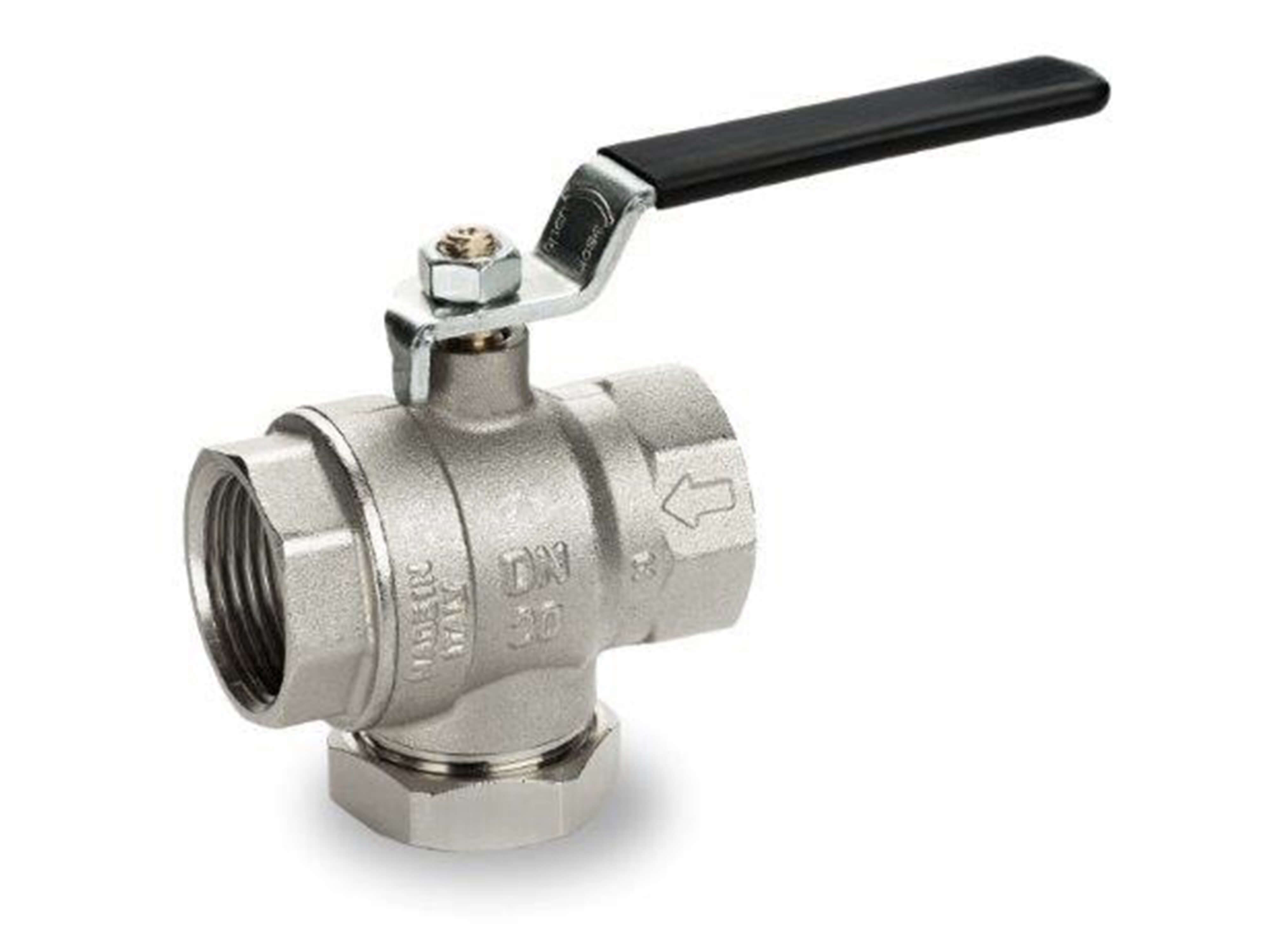

This ball valve with built-in vertical filter allows a large flow rate with a low pressure drop and supports a maximum pressure of 30 bar (PN).
This innovative product avoids the installation of two ball valves, before and after the filter. Quick and easy assembly, maintenance and cleaning.

Document
Permetti download anche all'utente anonimo
Off
Request info

Technical Info

  • Substitutes 3 different components (2 ball valves and one filter)
  • Reduces leakage risks due to lower sealing points
  • Cost saving due to reduced number of components
  • Time saving at installation and maintenance
  • Built-in vertical filter with cartridge structure in AISI304 + Nylon (filtration degree: 500 microns / 35 mesh). Size ½” has a central rib to ease filter extraction.
  • Final test conforming with UNI EN 12266-1 points A3 / A4 (for 1.½” and 2” sizes: acc. to directive 2014/68/UE)
  • No metal-to-metal moving parts
  • Handle clearly shows ball position
  • Chrome plated brass ball for longer life
  • Handle stop on body to avoid stress at stem
  •  Nominal port
  • Hot forged sand blasted, external nickel plated brass body and cap sealed with Loctite® or equivalent thread sealant
  • Finest brass according to EN 12165 and EN 12164 specifications
  • Bottom plug for an easy filter maintenance
  • Zinc plated steel handle with plastic dip coating
  • WARNING: do not exceed reasonable temperature and/or electrical load
  • Blowout-proof unplated brass stem
  • Two O-rings at the stem (FKM + NBR) for maximum safety
  • 30 bar (450 PSI) non-shock cold working pressure for sizes ½” to 1”, 20 bar (290 PSI) for sizes 1.¼” to 2”
  • -20°C to +150°C (-4°F to +300°F)
  • WARNING: freezing of the fluid in the installation may severely damage the valve
  • Pure PTFE seats

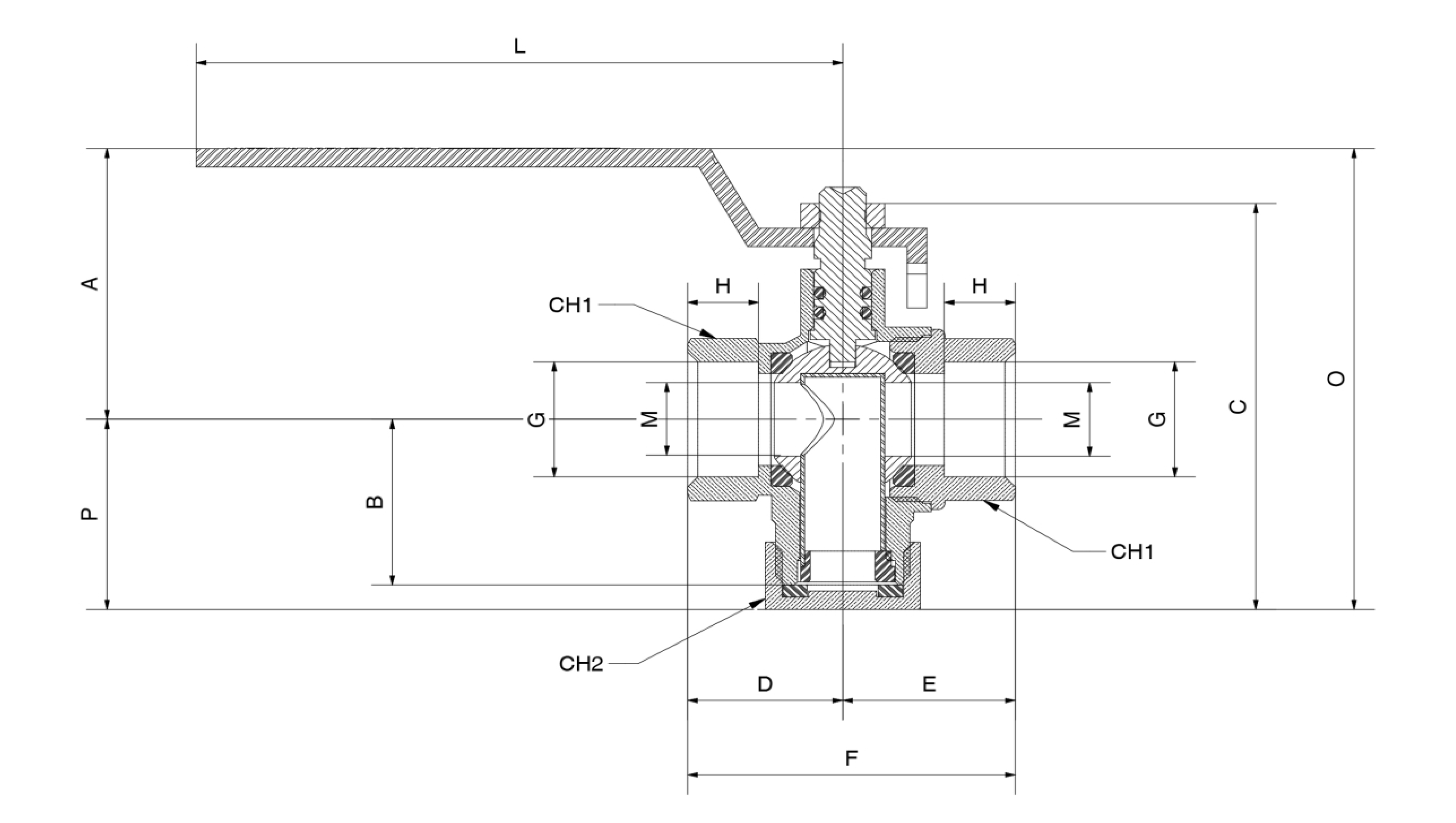

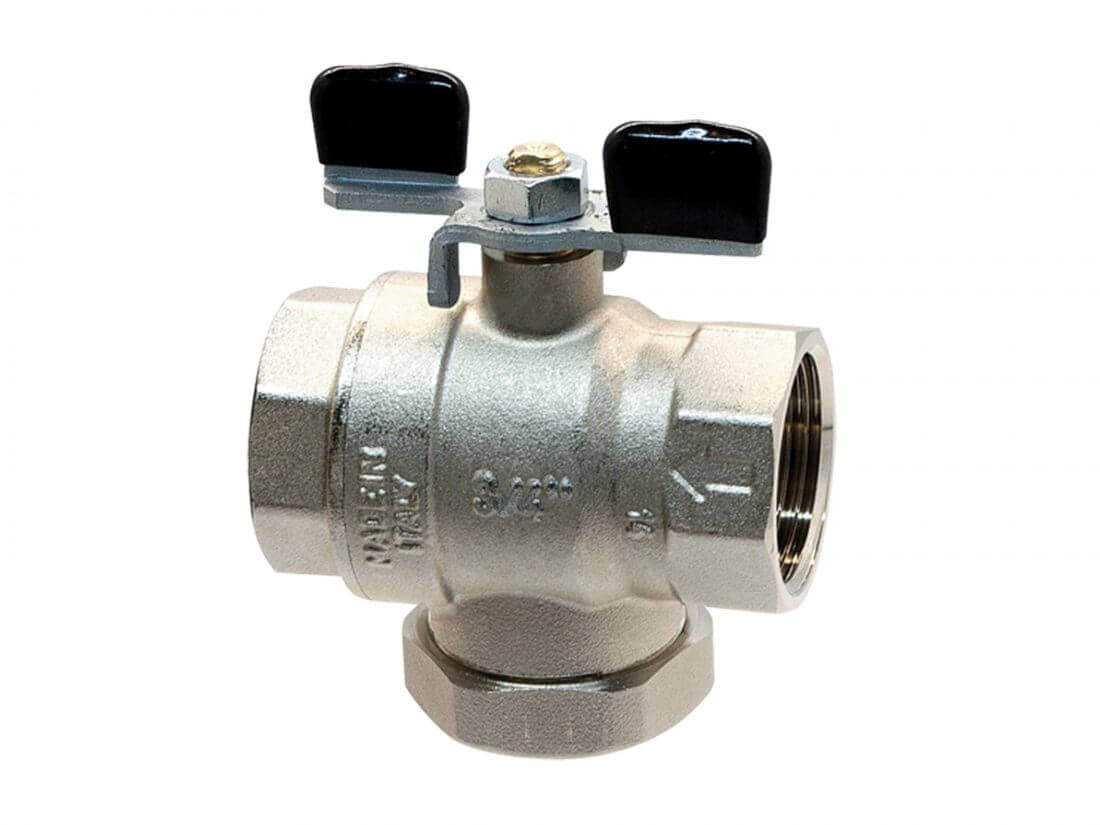

  • T-handle for ½” to 1” sizes.
  • ISO 228 parallel female by female threads
  • According to 2014/68/UE, 1.¼” and superior sizes cannot be used with dangerous fluids
  • Water Regulations Advisory Scheme (United Kingdom)
  • EAC – Declaration of conformity (Russia, Kazakhstan, Belarus)

NOTE: approvals apply to specific configurations/sizes only.

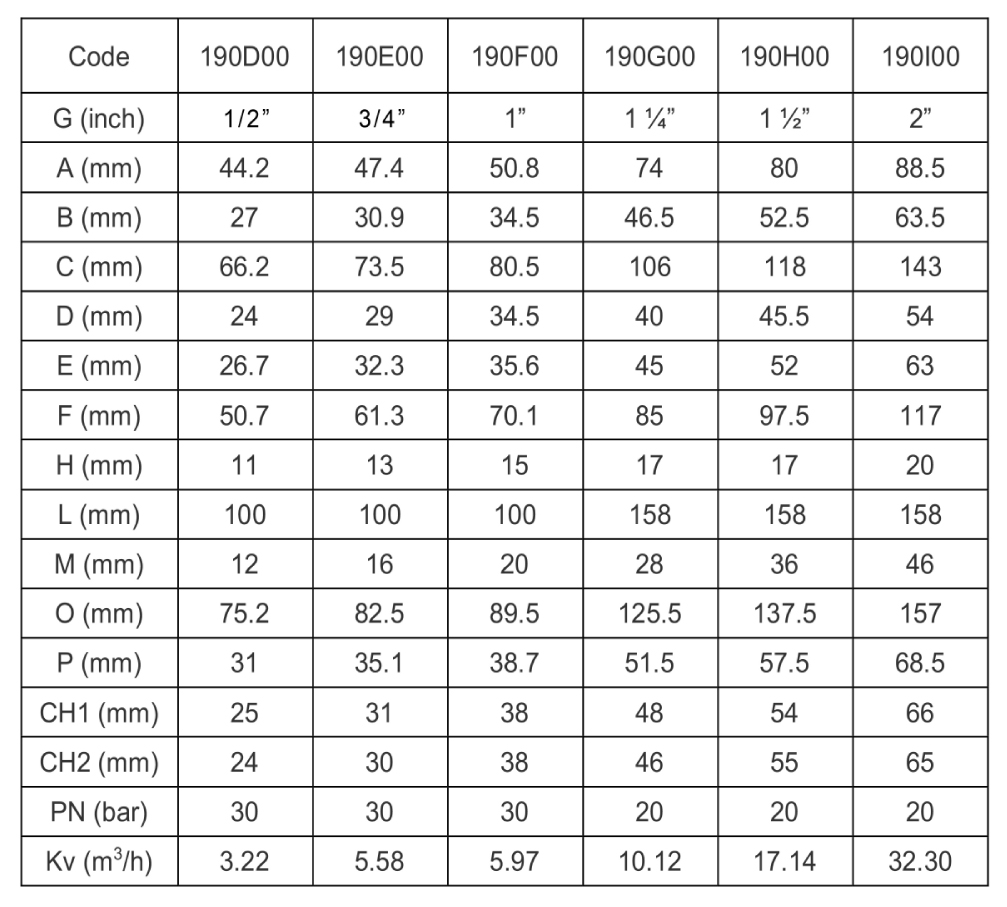

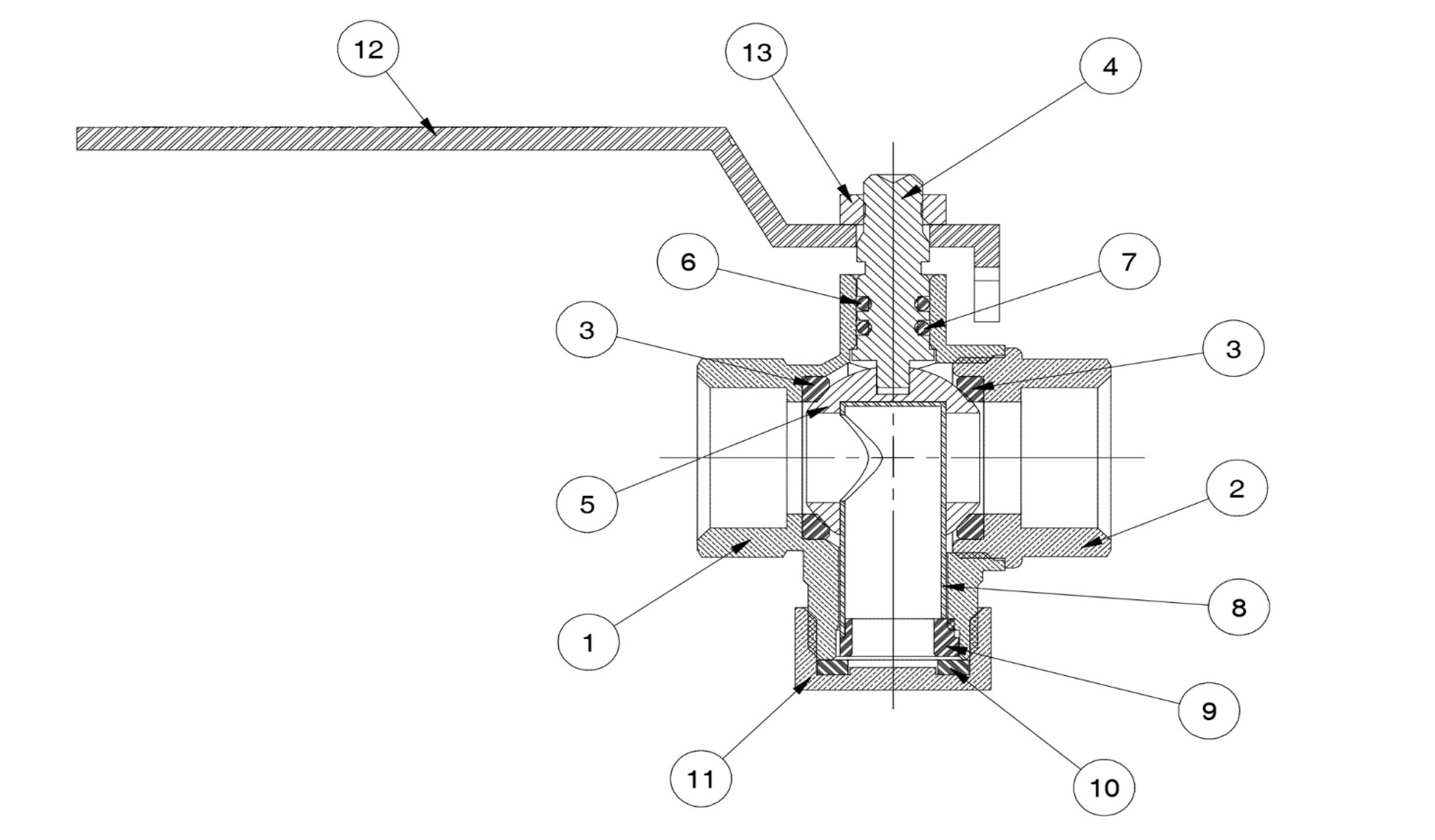

Part description Quantity Part Material
Nickel plated body (external treatment)
1
CW617N
Nickel plated end-cap (external treatment)
1
CW617N
Seat
1
PTFE
Unplated stem O-ring design
1
CW614N
Chrome plated ball
1
CW617N
O-Ring
1
NBR
O-Ring
1
FKM
Filter
1
AISI304 + Nylon
Filter
1
AISI304 + Nylon
Flat seal
1
NBR

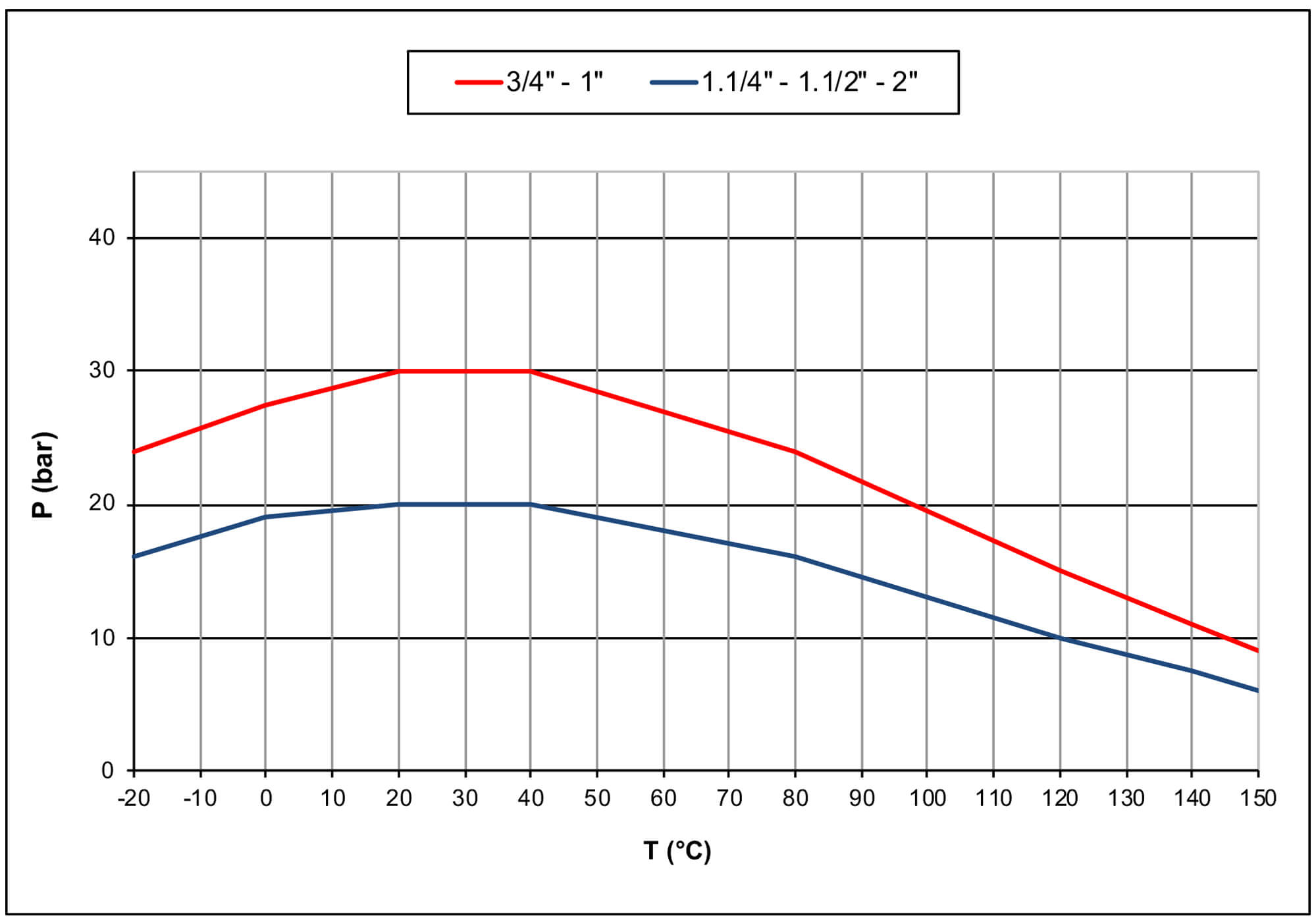

Pressure - temperature chart

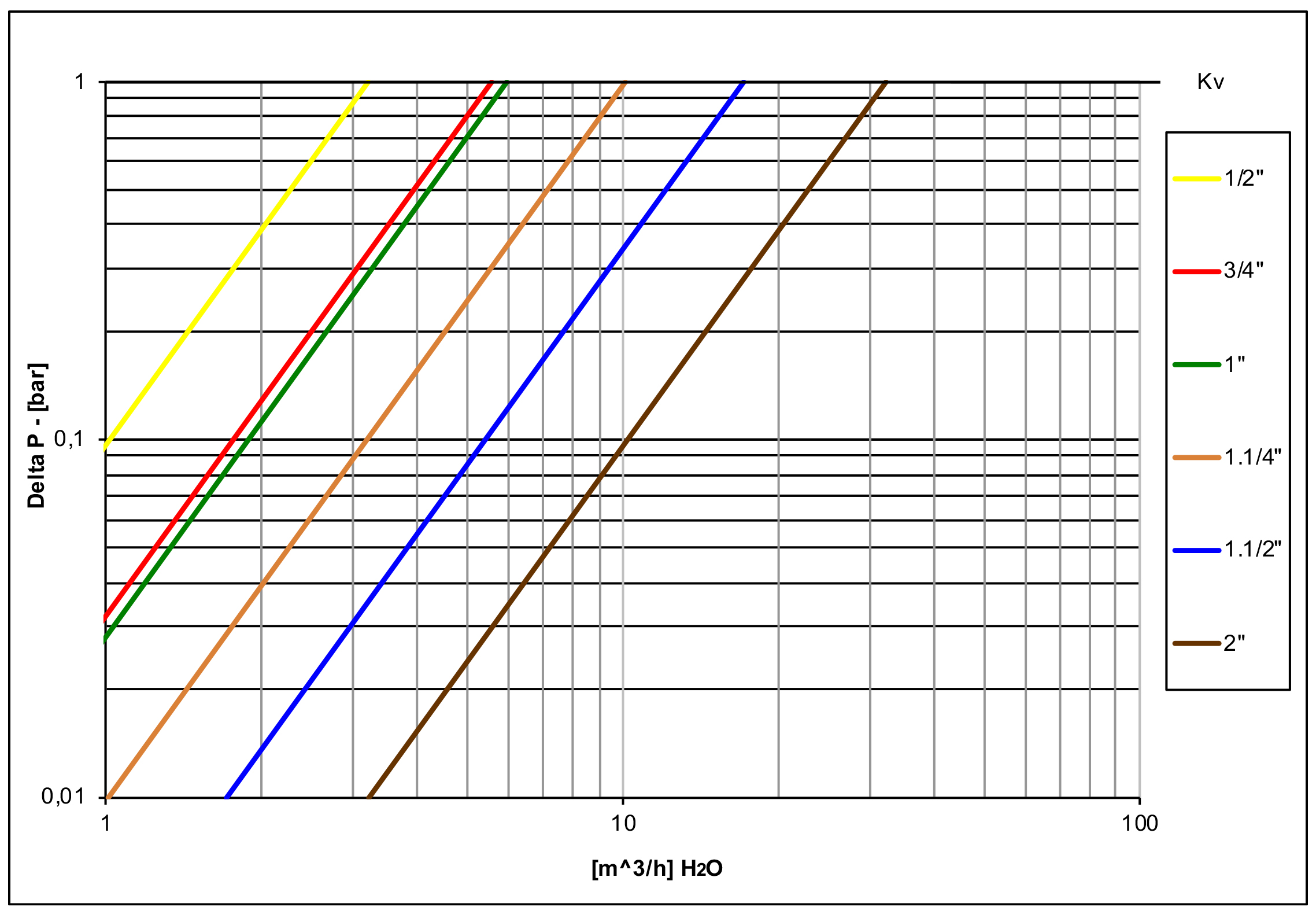

Pressure drop chart
