Technical Info
- Suitable for industrial, pneumatic and hydraulic installations
- Hot forged CW617N brass body
- Stainless steel filter (1.4301 / AISI 304)
- Degree of filtration: 1/4″ through 2″ 500 μm, 2.1/2″, 3″, 4″ 800 μm
- 20 bar up to 2″, 16 bar over 2″ non-shock cold working pressure
- -20°C to +110°C (-4°F to +230°F) in absence of steam
- WARNING: freezing of the fluid in the installation may severely damage the valve
- ISO 228/1 female by female parallel threads and inspection plug
- The product described in this document meets the requirements of PED Directive 2014/68/UE and according to art.4 par.3, it does not require CE marking; it cannot be used with dangerous gases in sizes larger than 25 mm; it cannot be used with non-dangerous gases in sizes larger than 50mm
- Attestation de Conformité Sanitaire (France)
NOTE: approvals apply to specific configurations/sizes only.

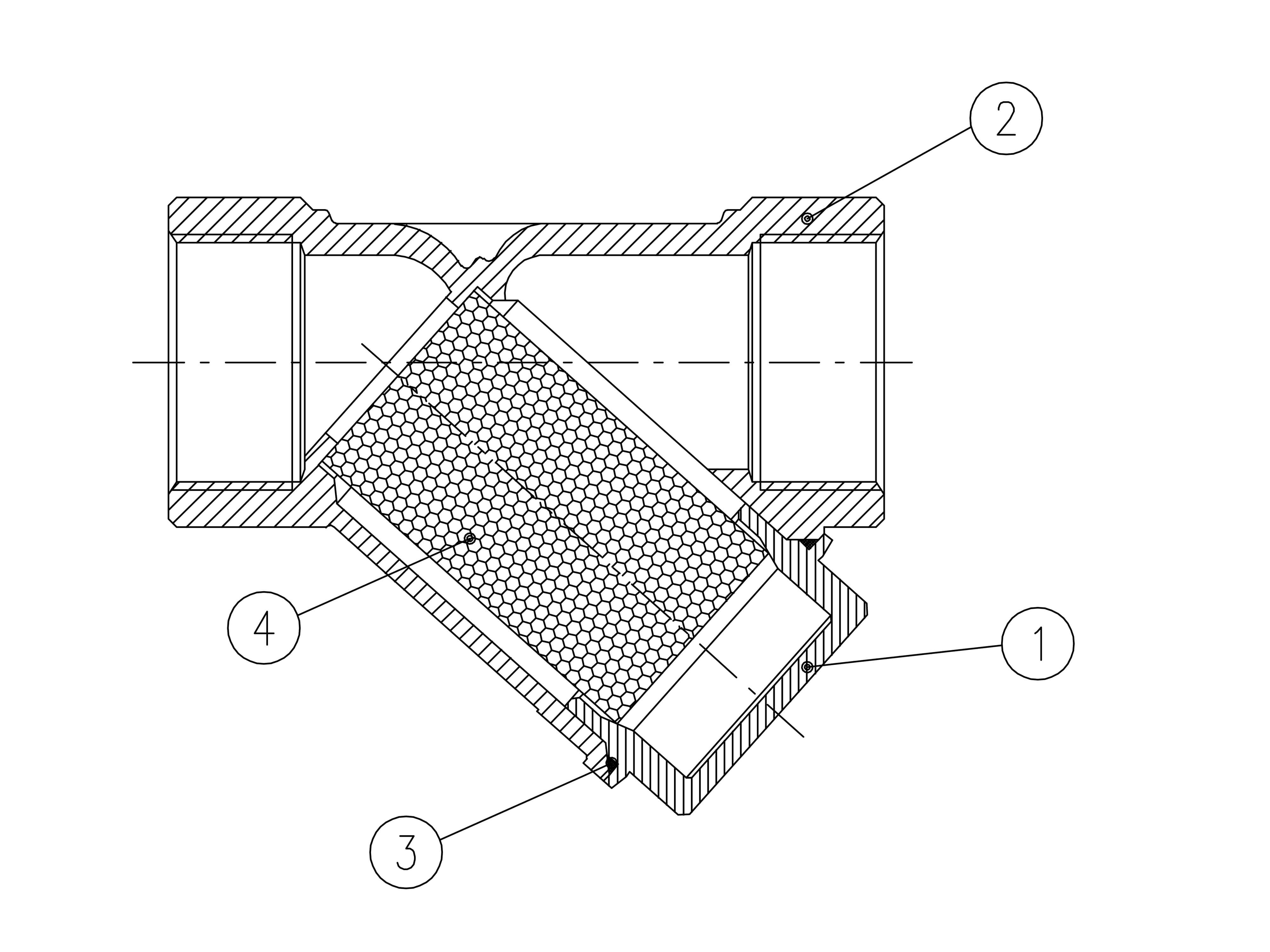

| Part description | Quantity | Part Material |
|---|---|---|
|
End-cap
|
1
|
CW617N
|
|
Body
|
1
|
CW617N
|
|
O-Ring
|
1
|
NBR
|
|
Stainless steel strainer
|
1
|
1.4301/AISI 304
|
Pressure-temperature chart
Technical material
Document
Document
Ask for additional information on the whole range of RuB products and consult with your supplier for special applications.
