• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• No maintenance ever required
• Silicone-free lubricant on all seals
• Chrome plated brass ball for longer life
• Each valve is seal tested for maximum safety
• Handle/ stem clearly shows ball position

• One piece drawn sand blasted brass body with extremely compact design
• Finest brass according to EN 12164 specification
• Patent n. 7011-B/89

• Reinforced nylon black wedge handle removable with valve in service
• WARNING: do not exceed reasonable temperature and/or electrical load

• Blowout-proof brass stem with FPM O-ring
• Maintenance-free, double FPM O-ring at the stem for maximum safety

• 30 bar (450 PSI) non-shock cold working pressure
• -20°C to +90°C (-4°F to +200°F)
• +120°C (+250°F) screw driver version and metal wedge handle
• WARNING: freezing of the fluid in the installation may severely damage the valve

• Pure PTFE self-lubricating seats with flexible-lip design

• Screw driver or wrench operated

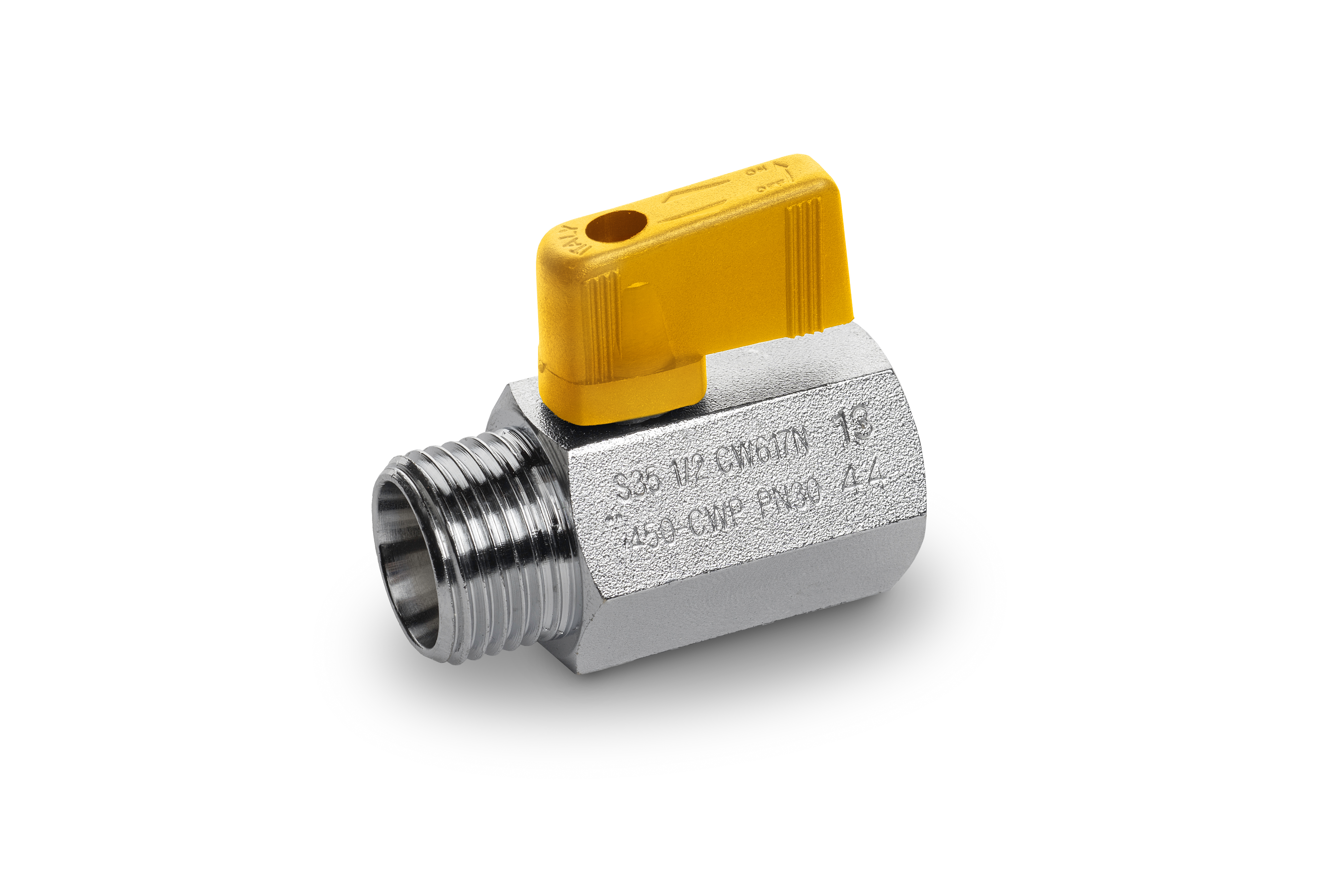

• Nylon wedge handle yellow, red or green
• Metal wedge handle available in colours red, black, yellow, green, light blue, chrome plated
• Grey wedge handle in Grivory® -high performing polymer

• ISO7/1, BS 21 taper male by female threads

• Aluminum body
• Dezincification resistant brass CW602N

• The product meets the requirements of PED Directive 2014/68/UE and according to art.4 par.3, it does not require CE marking

• EAC – Declaration of conformity (Russia, Kazakhstan, Belarus)
• RoHS Compliant (EU)

  NOTE: approvals apply to specific configurations/sizes only.
