Several governmental authorities recommend use of special alloys for valves handling water in areas where there is a problem of dezincification. RuB DZR valves are designed to meet such requirements.

Through the use of new technology these valves retain the reliability and competitiveness of brass, but are comparable to bronze in corrosion resistance.

Be kind with yourself, make sure the valve that brings you pure fresh water is an RuB DZR valve.

Technical Info

  • 24h 100% seal test guaranteed
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • No metal-to-metal moving parts
  • No maintenance ever required
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Chrome plated DZR brass ball for longer life
  • Handle stops on body to avoid stress at stem
  • Full port to DIN 3357 for maximum flow
  • Hot forged sand blasted DZR unplated body and cap sealed with Loctite® or equivalent thread sealant
  • Dezincification resistant ADZ-T and ADZ-P brass approved to SBN-PFS 1983:2 and NR-BFS 1988:18 specifications
  • Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
  • Handle removable with valve in service
  • WARNING: do not exceed reasonable temperature and/or electrical load
  • Maintenance-free, double FPM O-rings at the stem for maximum safety
  • Blowout-proof unplated DZR brass stem
  • 30 bar (450 PSI) non-shock cold working pressure
  • -40°C to+170°C (-40°F to +350°F)
  • WARNING: freezing of the fluid in the installation may severely damage the valve
  • Pure PTFE self-lubricating seats with flexible-lip design
  • CW617N brass body and components
  • T-handle
  • Oval lockable handle
  • Stainless steel handle (1.4016 / AISI 430)
  • Patented locking device
  • Brass stem extension
  • Female by female threads for sizes ¼” through 2”
  • Stubby handle
  • RuB memory stop designed to be installed with our stubby handle
  • ISO 228 parallel male by female threads
  • Stainless steel ball (1.4401 /AISI 316)
  • Glass filled PTFE seals
  • Custom design
  • According to 2014/68/UE module A: it cannot be used with dangerous gases in sizes larger than 25mm
  • GOST-R (Russia)
  • EAC – Declaration of conformity (Russia, Kazakhstan, Belarus)
  • RoHS Compliant (EU)

  NOTE: approvals apply to specific configurations/sizes only.

1 1/4” hollow ball

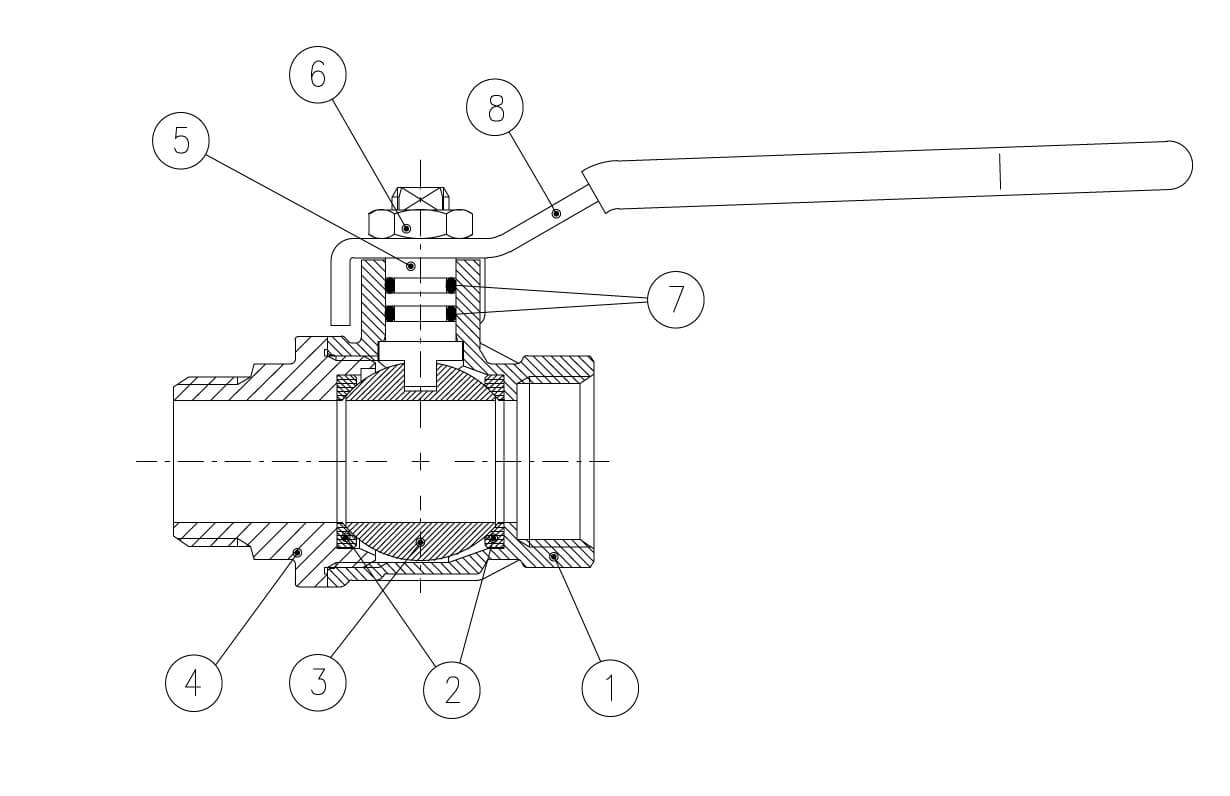

Part description Quantity Part Material
Unplated body
1
CW602N
Ball seat
2
PTFE
Chrome plated ball
1
CW602N
Unplated end-cap
1
CW602N
Unplated stem O-ring design
1
CW602N
Geomet® nut
1
CB4FF (EN10263-2)
O-Ring
2
FPM
White PVC coated Geomet® steel handle
1
DD11 (EN10111)

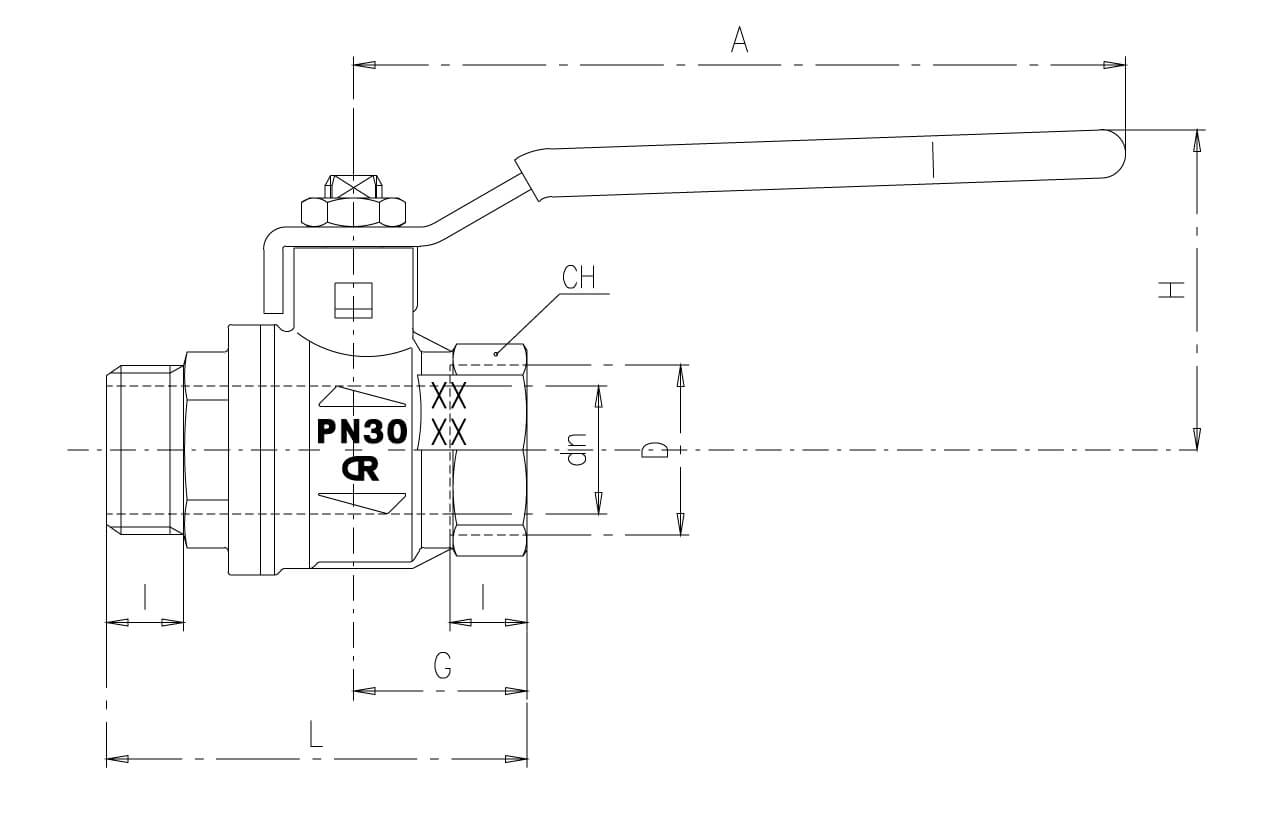

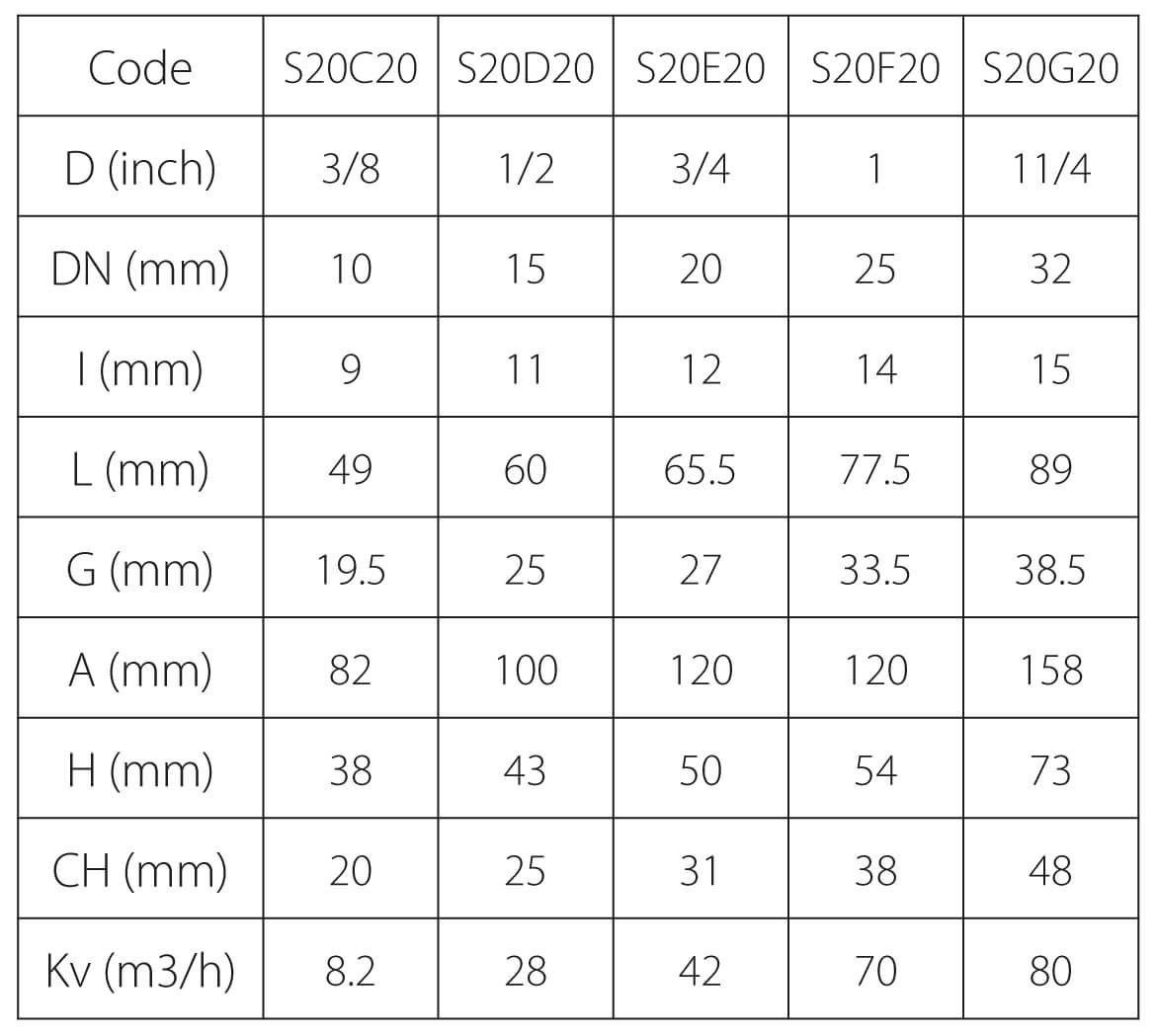

DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4

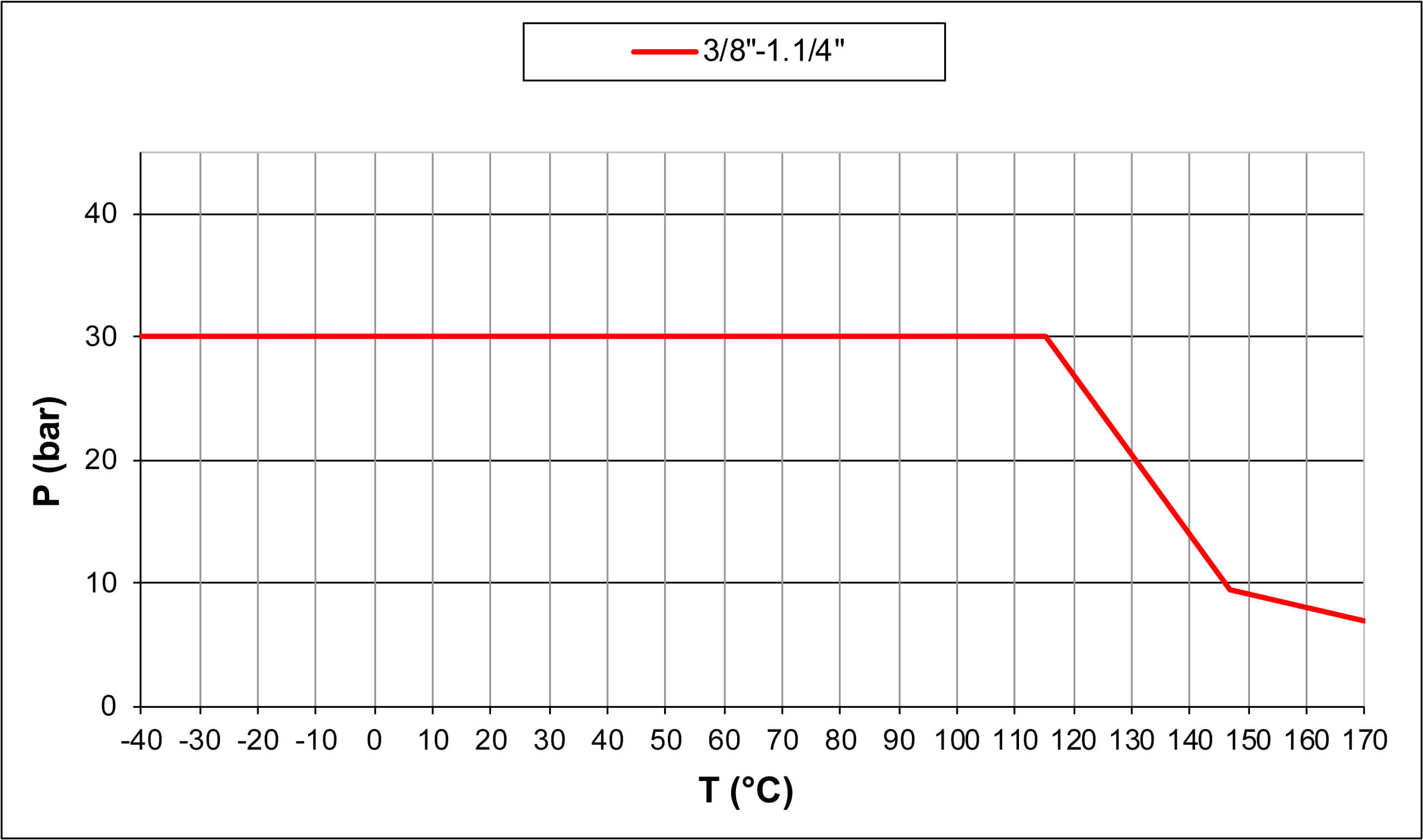

Pressure-temperature chart

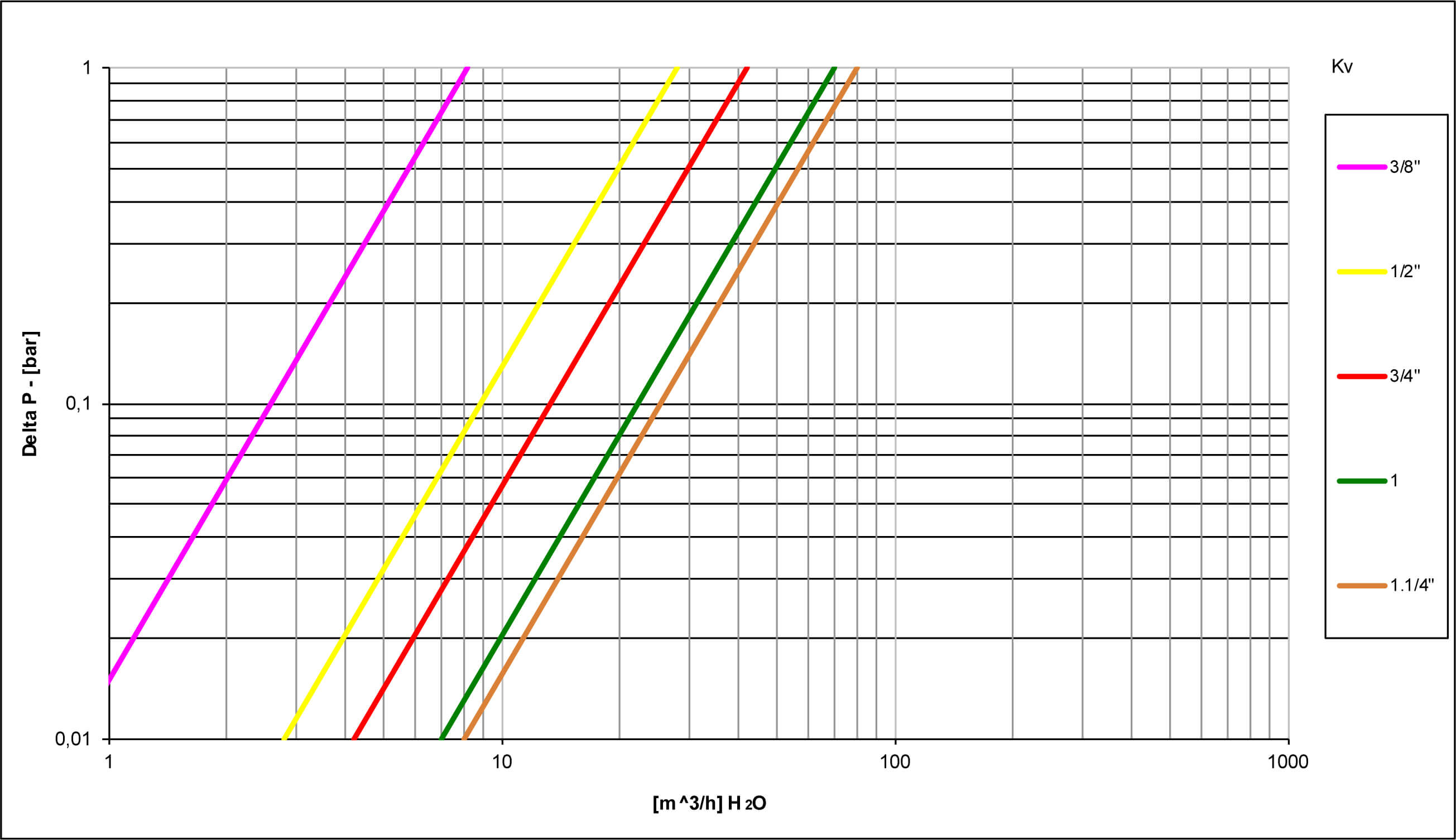

Pressure drop chart

Ask for additional information on the whole range of RuB products and consult with your supplier for special applications.

XCES20M
-
