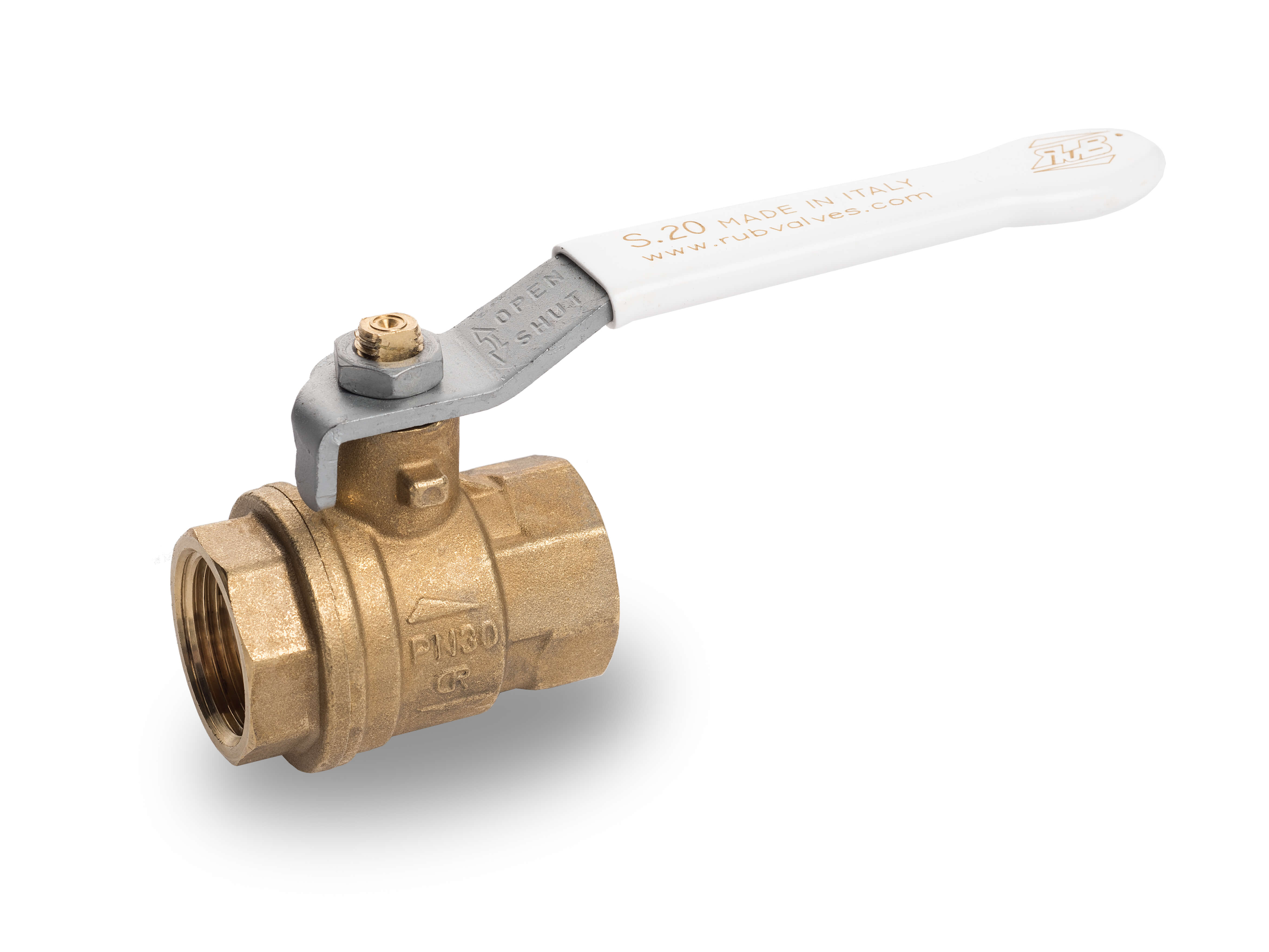

Several governmental authorities recommend use of special alloys for valves handling water in areas where there is a problem of dezincification. RuB DZR valves are designed to meet such requirements.
Through the use of new technology these valves retain the reliability and competitiveness of brass, but are comparable to bronze in corrosion resistance.
Be kind with yourself, make sure the valve that brings you pure fresh water is an RuB DZR valve.
Document
Technical Info
- 24h 100% seal test guaranteed
- Dual sealing system allows valve to be operated in either direction making installation easier
- No metal-to-metal moving parts
- No maintenance ever required
- Handle clearly shows ball position
- Silicone-free lubricant on all seals
- Chrome plated DZR brass ball for longer life
- Handle stops on body to avoid stress at stem
- Full port to DIN 3357 for maximum flow
- Hot forged sand blasted DZR unplated body and cap sealed with Loctite® or equivalent thread sealant
- Dezincification resistant ADZ-T and ADZ-P brass approved to SBN-PFS 1983:2 and NR-BFS 1988:18 specifications
- Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
- Handle removable with valve in service
- WARNING: do not exceed reasonable temperature and/or electrical load
- Maintenance-free, double FPM O-rings at the stem for maximum safety
- Blowout-proof unplated DZR brass stem

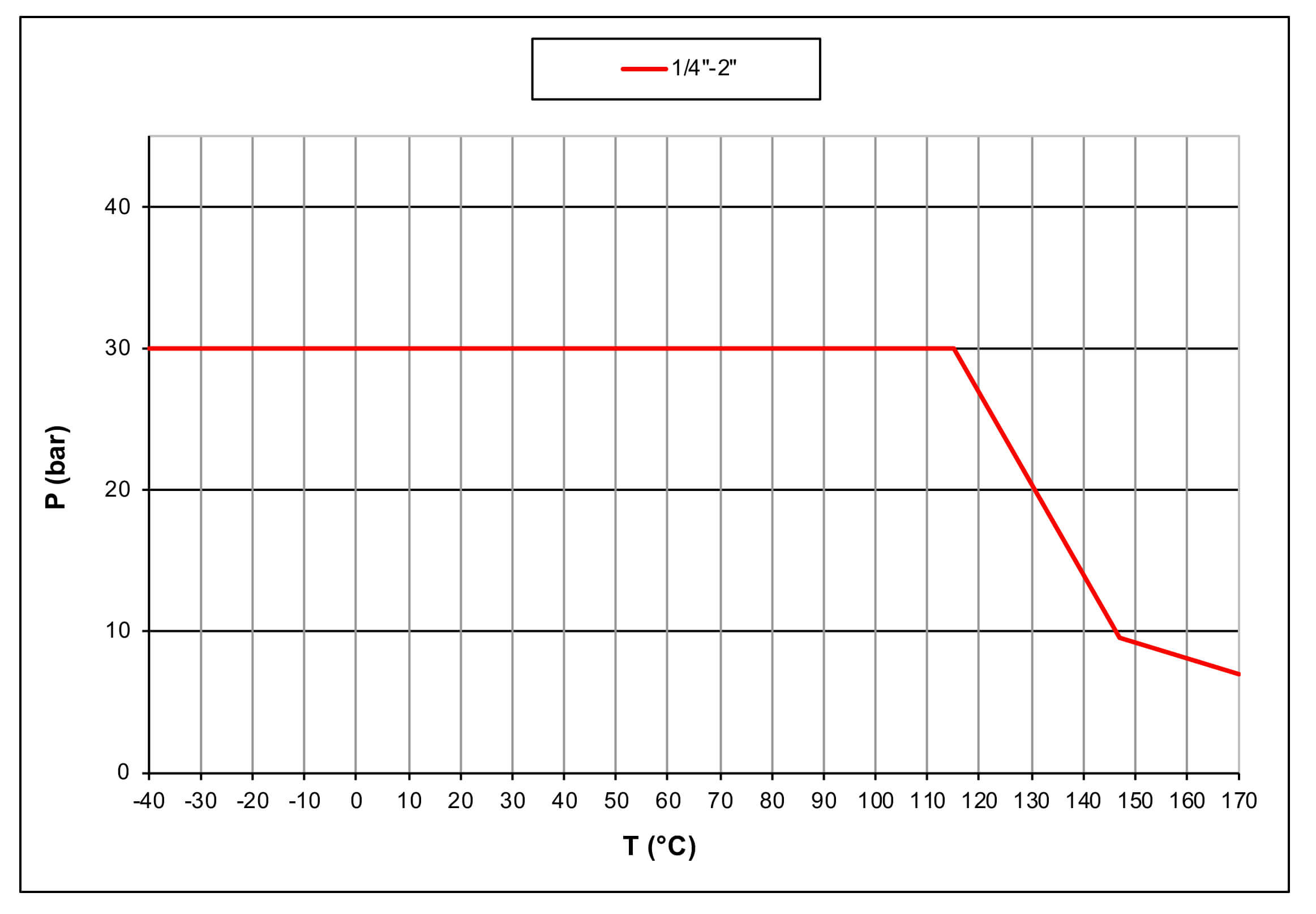

- 30 bar (450 PSI) non-shock cold working pressure
- -40°C to +170°C (-40°F to +350°F)
- WARNING: freezing of the fluid in the installation may severely damage the valve
- Pure PTFE self-lubricating seats with flexible-lip design
- CW617N brass body and components

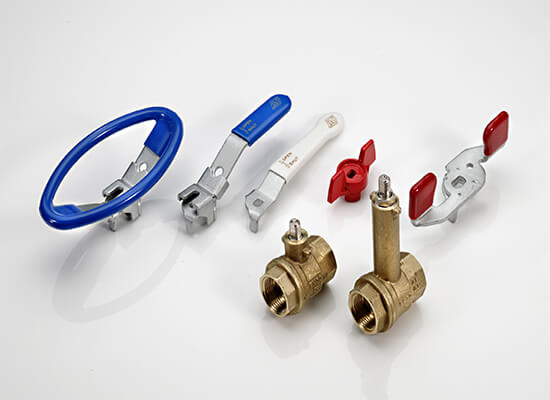

- T-handle
- Oval lockable handle
- Stainless steel handle (1.4016 / AISI 430)
- Patented locking device
- Brass stem extension
- Male by female threads for sizes 1/2″, 3/4″ and 1″
- Stubby handle
- RuB memory stop designed to be installed with our stubby handle
- ISO 228 parallel female by female threads
- Stainless steel ball (1.4401 /AISI 316)
- Glass filled PTFE seals
- Custom design
- Male by female threads
- According to 2014/68/UE module A: it cannot be used with dangerous gases in sizes larger than 25mm
- KIWA Regulation 4 a.k.a. KUKreg4 (United Kingdom)
- GOST-R (Russia)
- EAC – Declaration of conformity (Russia, Kazakhstan, Belarus)
- RoHS Compliant (EU)
- Water Regulations Advisory Scheme (United Kingdom)
NOTE: approvals apply to specific configurations/sizes only.

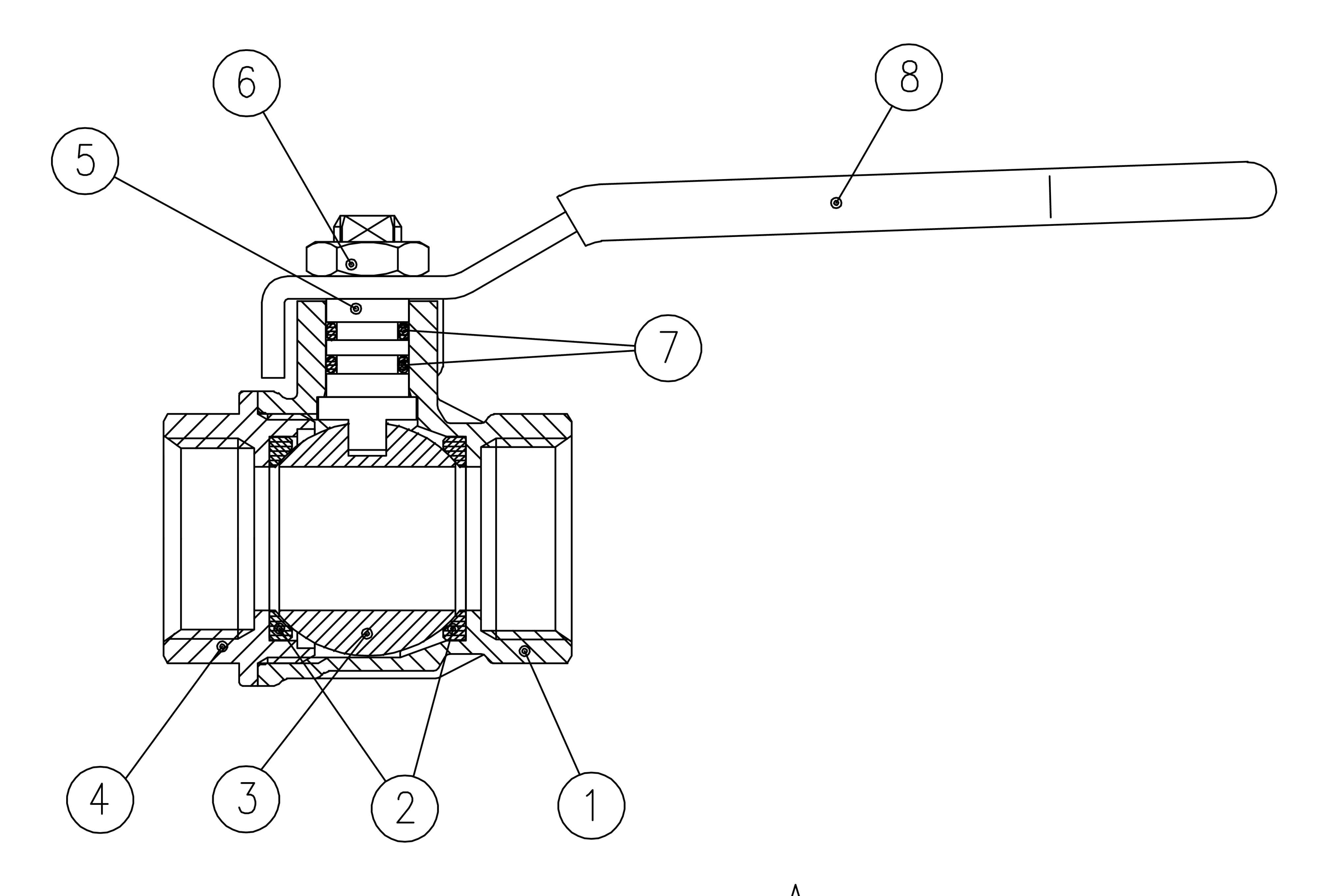

Part description | Quantity | Part Material |
---|---|---|
Unplated body
|
1
|
CW602N
|
Ball seat
|
2
|
PTFE
|
Chrome plated ball
|
1
|
CW602N
|
Unplated end-cap
|
1
|
CW602N
|
Unplated stem O-ring design
|
1
|
CW602N
|
Geomet® nut
|
1
|
CB4FF (EN10263-2)
|
O-Ring
|
2
|
FPM
|
White PVC coated Geomet® steel handle
|
1
|
DD11 (EN10111)
|
Technical material
Ask for additional information on the whole range of RuB products and consult with your supplier for special applications.
