Info technique

• Torque output up to 8 Nm (71 in-lb)
• Suitable for actuatable valves
(RuB valves up to 1 ¼” size; only for s.64 LT and s.65)
• Standard power cable lenght: 0,8 m (31”)
• Control Type: 2P (ON-OFF) or 3P (INTERMEDIATE POSITION)
• 2 Micro-switches for open-close signals:
        - Standard: motor-voltage switches
        - Optional: free-auxiliary switches
• Micro-switches can pass up to 1A
• Bidirectional motor
• DC brushless motor
• Over 100.000 cycle life tests made
• Duty cycle 60%
• Direct mount on valve for perfect shaft alignment
• Positive orientation between ball valve and actuator
• Actuator easily removable for manual operating by screwdriver (s.31)
• Visual position indicator
• Corrosion resistant PC plastic housing
• The gearbox structure is made of steel

  • 220-240V AC 50/60Hz
  • 110-120V AC 50/60Hz;
  • 24V AC 50-60Hz;
  • 24V DC / AC 50-60Hz;
  • 3.5÷12 V DC; 12 V DC; 24V DC;
  • Motor power consumption only during operation:

         - DC and DC/AC: 5.5W;
         - AC: 8W

  • Operation time (90°):

    - DC and DC/AC: 3 sec;
    - AC 50Hz: 20 sec;
    - AC 60Hz: 15 sec
  • Working temperature -20°C (-4°F) to +80°C (+180°F)*

*UL approval up to +70°C (+160°F)

  • UL-listed Class XABE
  • IEC/CE:
    - Low voltage directive (LVD) 2014/35/EU
    - Electromagnetic Compatibility Directive (EMCD) 2014/30/EU
    - IEC/EN 60730-1 Automatic electrical controls for household
    and similar use - Part 1: General requirements
    - IEC/EN 60730-2-14 Automatic electrical controls for household and similar use - Part 2-14: Particular requirements for electric actuators
  • IEC 60529: IP65 degrees
  • ANSI/NEMA 250: Enclosures for Electrical Equipment NEMA 4X
  • IEC/EN 60730-1: IEC Electric Protection Class
    - 110VAC e 220VAC: Class 2 (II)
    - Other voltage: Class 3 (III)

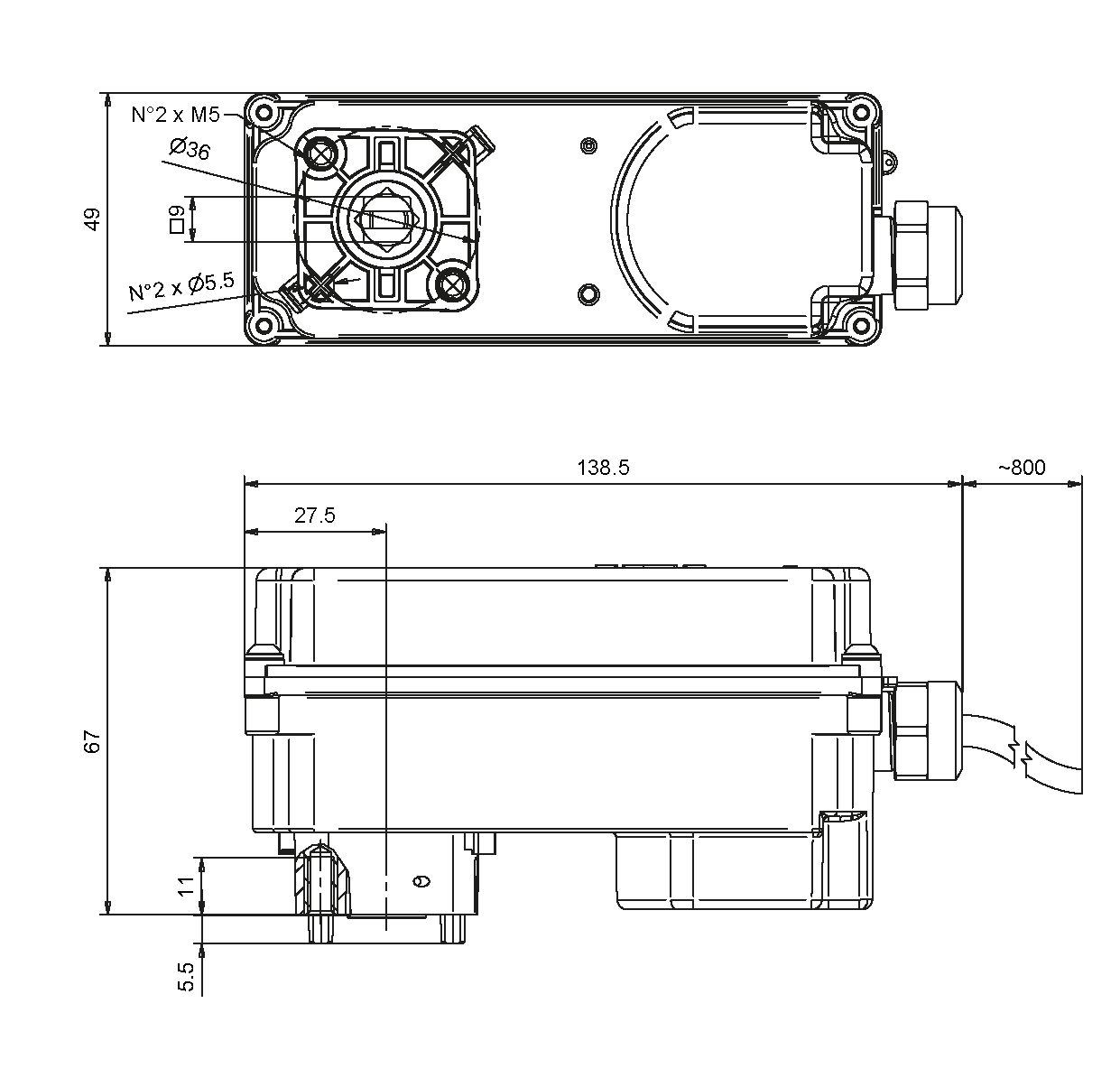

Dimensions mm - Flange ISO 5211 F03

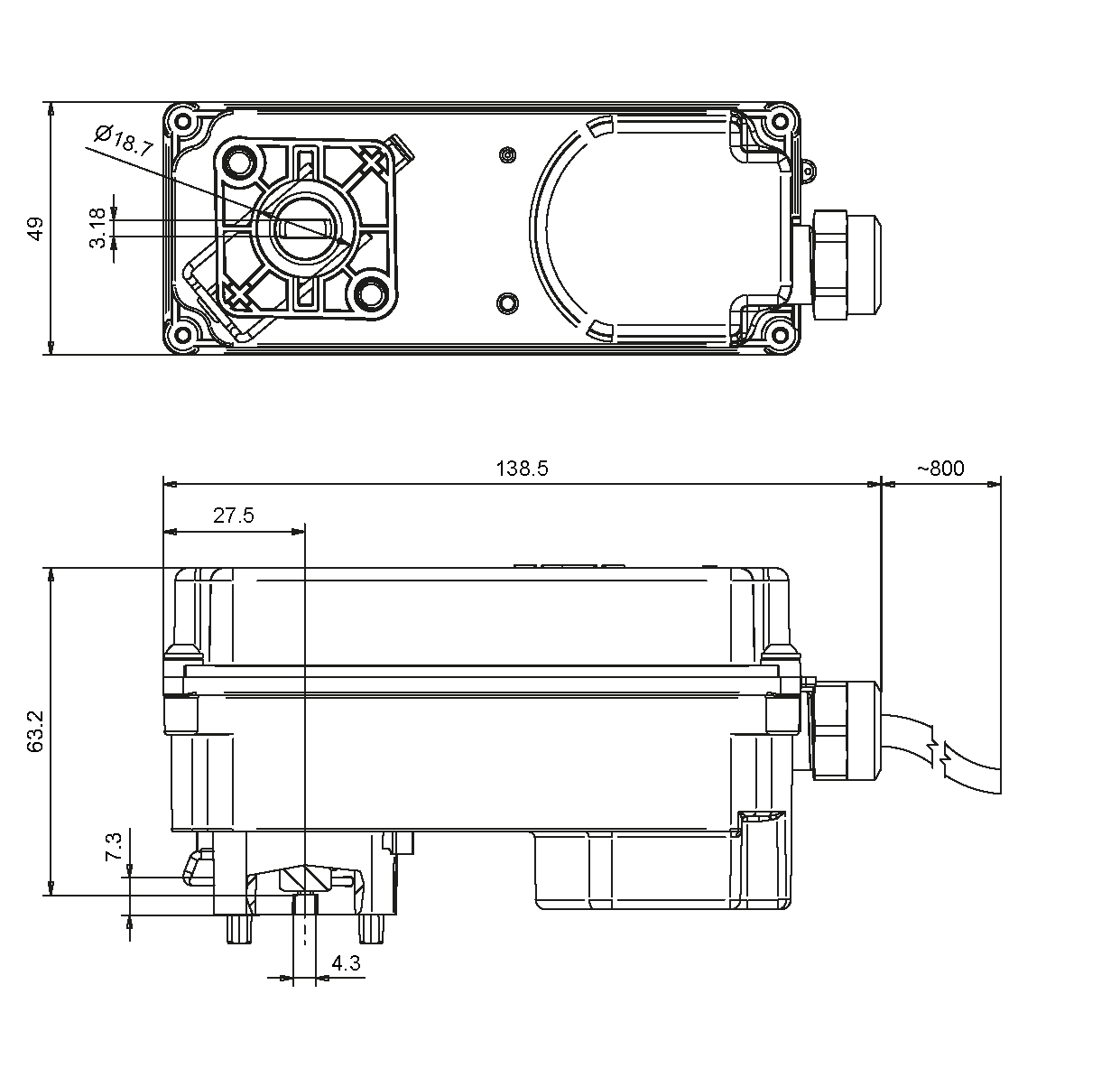

Dimensions mm - for s.31

How to order
